Configure SSO with OIDC authentication

Learn how to configure SSO with OpenID Connect (OIDC).

Available on:
• Enterprise plan

Retool's OpenID integration uses the Authorization Code Flow. Retool, at minimum, expects either an ID token or access token to be a JSON Web Token (JWT) that contains the email of the authenticated user.

Requirements

To configure SSO with OIDC, you need:

• The OAuth client ID for your application
• The OAuth client secret for your application
• A list of scopes to grant to Retool
• The authorization endpoint for your OpenID provider
• The token endpoint for your OpenID provider

You should confirm how your SSO provider formats its ID and access tokens. Retool attempts to decode these tokens as JWTs. You must provide Retool the path in the decoded JWT that corresponds with your identifying user information.

Some SSO providers don't return both an ID token and access token by default. You might need to provide additional metadata to obtain both tokens. See the provider-specific guides and generic process to obtain a fat token for more details.

Required settings

Configure your SSO settings in Retool.

When possible, use the Settings UI to configure SSO for a more streamlined setup. Existing environment variables pre-populate in the Settings UI, which you can override or preserve. Some settings are only available as environment variables.

SSO settings page

On Retool Cloud and self-hosted Retool versions 3.16 and later, enter settings on Settings > Single Sign-On (SSO).

Setting	Example value
Client ID	XXXXXXXXXX
Client secret	XXXXXXXXXX
Scopes	openid email offline_access profile
Auth URL	https://yourcompany.idprovider.com/oauth2/v1/authorize
Token URL	https://yourcompany.idprovider.com/oauth2/v1/token
Email key	idToken.email

Environment variables

On self-hosted Retool versions earlier than 3.16, configure the following environment variables on your Retool instance.

Environment variable	Example
CUSTOM_OAUTH2_SSO_CLIENT_ID	yypLZ44LxEz0XlQZBu5k2Nq9XsdOv4f5
CUSTOM_OAUTH2_SSO_CLIENT_SECRET	xxxxxxxxxxxxxxxxxxxxxxxxxxxxx
CUSTOM_OAUTH2_SSO_SCOPES	openid email profile offline_access
CUSTOM_OAUTH2_SSO_AUTH_URL	https://retool.auth0.com/authorize
CUSTOM_OAUTH2_SSO_TOKEN_URL	https://retool.auth0.com/oauth/token
CUSTOM_OAUTH2_SSO_JWT_EMAIL_KEY	idToken.email
CUSTOM_OAUTH2_SSO_JWT_FIRST_NAME_KEY	idToken.given_name
CUSTOM_OAUTH2_SSO_JWT_LAST_NAME_KEY	idToken.family_name

On self-hosted deployments, you should also set the BASE_DOMAIN environment variable to ensure links using your domain—for example, new user invitations and forgotten password resets—are correct. Retool's backend tries to determine the BASE_DOMAIN if it is not set, but it can be incorrect if your website uses a proxy.

BASE_DOMAIN=https://retool.yourcompany.com

Configure SSO for your provider

Follow the configuration guides to set up SSO with OIDC for Auth0, Google, Okta, or Microsoft Entra ID.

Role mapping

Role mapping modify group memberships on subsequent logins. During initial configuration, test role mapping on a non-admin user or verify that a separate admin can log in with an alternate authentication method to avoid losing admin access.

You can also map the roles returned from the OpenID response to your Retool permission groups. Any Retool groups that are not specified in the role mapping are overwritten. Groups are created automatically in Retool when a user logs in.

The following example maps the devops and support roles to specific Retool permission groups.

Setting	Environment variable	Example value
Roles key	CUSTOM_OAUTH2_SSO_JWT_ROLES_KEY	idToken.groups
Role mapping	CUSTOM_OAUTH2_SSO_ROLE_MAPPING	devops -> admin, support -> viewer

After setting these environment variables, a user's groups sync the next time they log in to Retool over SSO.

Roles set using this environment variable are case sensitive. This means:

1. Roles set within your IdP that you pass within the variable need to match exactly. For example, if you have a Retool Admin role in your IdP, you need to pass Retool Admin.
2. Roles within Retool are always lowercase. For example, if you have a Retool Admin role within your IdP, and you want to map it to Retool's admin role, you need to set it using Retool Admin → admin.

To disable role mapping, set CUSTOM_OAUTH2_SSO_ROLE_MAPPING_DISABLED to true.

Examples

Roles	Role mapping setting	Result
["admin", "editor"]	""	The user is added to the "admin", "editor", and "All Users" groups.
[]	""	The user is added to the "All Users" group.
["admin", "support"]	""	A new custom group called "support" is created. The user is added to the "admin", "support", and "All Users" groups.
["support", "devops"]	"devops -> editor"	A new custom group called "support" is created. The user is added to the "editor", "support", and "All Users" groups.

Use authentication JWTs in resources

Using SSO with OIDC, you can reuse the tokens obtained throughout the SSO process in API calls you make from Retool to your backend services.

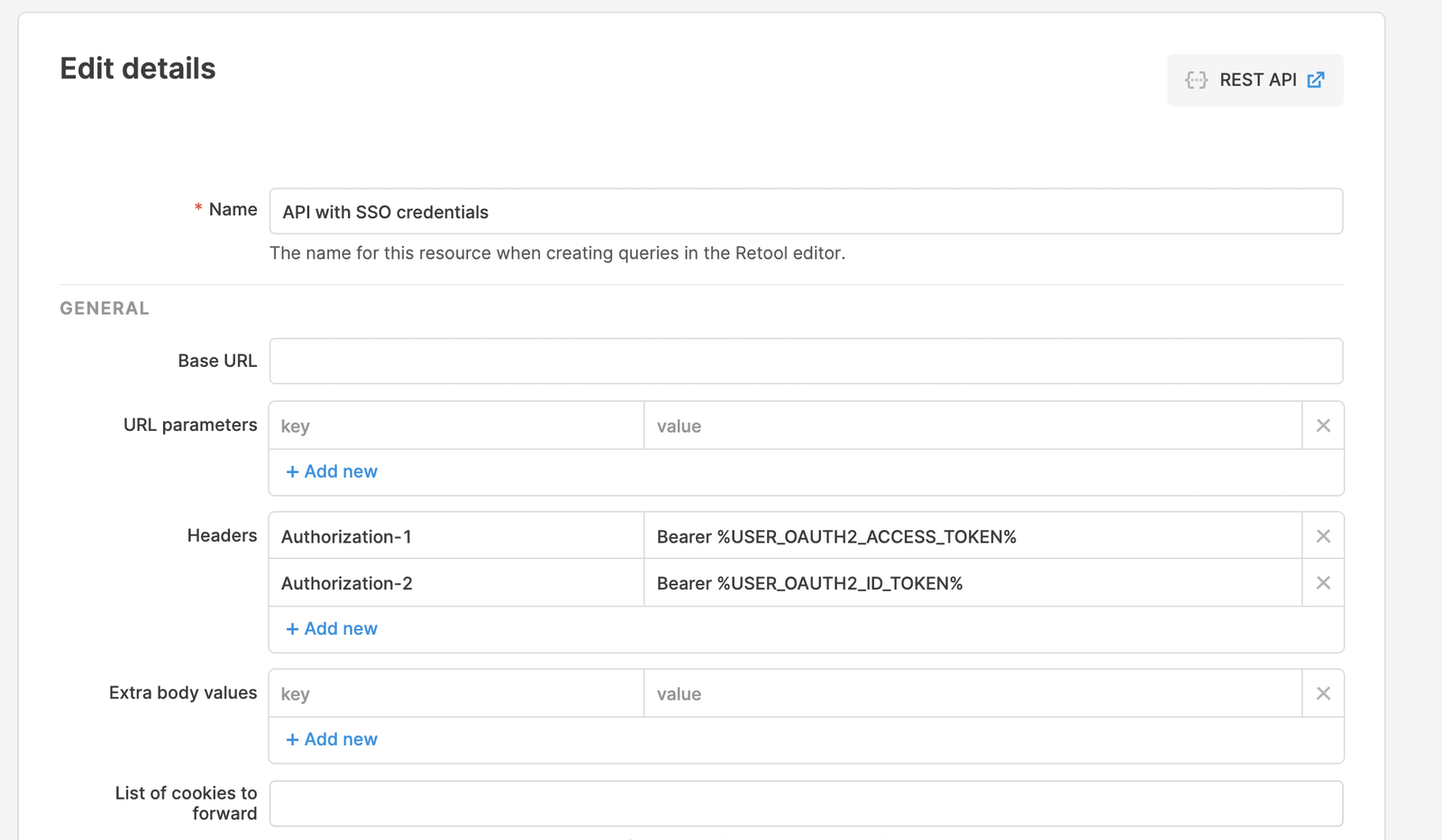

In the following example, USER_OAUTH2_ACCESS_TOKEN is replaced with the access token obtained in the auth flow, and USER_OAUTH2_ID_TOKEN is replaced with the ID token obtained in the auth flow.

Example using OAuth JWTs in resources

If your OpenID Provider returned a refresh token in the initial login flow, Retool automatically uses it to refresh the access and ID tokens every two hours by default. You can set a custom refresh time using the CUSTOM_OAUTH2_SSO_ACCESS_TOKEN_LIFESPAN_MINUTES environment variable.

Reference JWT claims in Retool apps

You can use JWT claims returned by your SSO provider to personalize Retool apps or control component permissions. Retool automatically includes these claims as the values of the current_user.metadata.idToken and current_user.metadata.accessToken keys. Access them using curly braces anywhere in your Retool app: {{current_user.metadata.idToken.picture}}

Custom claims

You can add custom claims following instructions from your IdP. See the guides to your IdP for instructions on where to add these claims. In Retool, custom claims are accessible in current_user.metadata.

Thin tokens and fat tokens

Some OIDC identity providers, such as Okta, don't send all the claims associated with a user during the authentication flow. This is called a thin token and is used in place of a fat token, which returns all claims, for performance reasons. If your ID token is missing certain claims, you can tell Retool to make an additional request to a given endpoint for the fat token.

You can configure this endpoint in Settings > Custom SSO > Fat token URL on Retool Cloud, or using the CUSTOM_OAUTH2_SSO_USERINFO_URL environment variable on self-hosted deployments. For example, Okta uses the /userinfo endpoint.

CUSTOM_OAUTH2_SSO_USERINFO_URL=https://your-company.okta.com/oauth2/v1/userinfo

During the authentication flow, Retool replaces the thin token with the fat token returned from this endpoint.

Test the connection

Once you've configured your settings, click Save Changes. To test the integration and its settings, click the Test Connection button.

This triggers a simulation of the SSO flow that ensures that the proper groups are mapped, the right user metadata is sent from your identity provider, and the integration works seamlessly. Clicking the Test Connection button does not change the current user's permission groups, and you won't be locked out if SSO is misconfigured.

After Retool tests the connection, a new tab opens and displays the Connection Status, Issues Detected, and Connection Details. If there are any issues, this page displays warnings and recommendations to resolve them. You can see the full response from the SSO provider in the Connection Details section.

Once you are satisfied with your configuration, log out of Retool and log back in using SSO to test the flow yourself.

If you use a self-hosted deployment and updated your environment variables, restart your Retool instance.
