Connect to OpenAI
Connect to OpenAI and use their models for AI-powered apps and automations in Retool.
AI resource integrations are rolling out on cloud instances and will be available for self-hosted instances in a future release. Continue to use the Retool AI resource with OpenAI models if this feature isn't yet available for your organization.
OpenAI provides advanced AI models for natural language processing, code generation, text analysis, and reasoning tasks. You can create an OpenAI resource so you can build AI-powered apps and workflows that leverage GPT's capabilities for content generation, data analysis, conversational interfaces, and more.
What you can do with OpenAI
With a OpenAI resource, you can interact with LLMs to perform various actions, including:
Text actions
| Action | Description |
|---|---|
| Generate text | Create original text content based on your prompt. Use for content generation, creative writing, code generation, and general-purpose text tasks. |
| Summarize text | Condense long-form content into concise summaries. Specify the input text and desired summary format. |
| Classify text | Categorize text into predefined categories. Provide the text to classify and the possible categories. |
| Extract entity from text | Extract specific information from unstructured text. Define what entities or data points to extract (names, dates, amounts, etc.). |
Chat actions
| Action | Description |
|---|---|
| Generate chat response | Create contextual responses in multi-turn conversations. The AI model considers previous messages to maintain conversation flow. |
Image actions
| Action | Description |
|---|---|
| Generate text from image | Analyze images and generate descriptive text. Upload an image or provide an image URL, then ask questions or request analysis. |
| Caption image | Generate descriptive captions for images. Provide an image and optionally specify the caption style or focus. |
| Generate image | Create images from text descriptions using DALL·E models. Specify image size, style, and quality parameters. |
Supported models
- Retool-managed key
- Bring your own key
The following models are available with Retool-managed keys:
| Model | Resource queries | Agent support | Assist support |
|---|---|---|---|
| GPT Image 1 | |||
| GPT Image 1 Mini | |||
| GPT Image 1.5 | |||
| GPT-3.5 Turbo | |||
| GPT-4 | |||
| GPT-4 Turbo | |||
| GPT-4.1 | |||
| GPT-4.1-mini | |||
| GPT-4.1-nano | |||
| GPT-4o | |||
| GPT-4o-mini | |||
| GPT-5 | |||
| GPT-5.1 | |||
| o4-mini |
When you configure an OpenAI resource with your own API key, Retool interacts directly with the OpenAI API. You can use any OpenAI model you have access to through your OpenAI account, including:
- All current and future GPT models
- o-series reasoning models
- Image generation models (DALL·E)
- Embedding models
- Fine-tuned models
Specify the model ID in your queries (e.g., gpt-5.2, gpt-4.1, o3-mini). Refer to OpenAI's model documentation for the complete list of available models and their identifiers.
Before you begin
Before creating an OpenAI resource, you need:
- Retool permissions: Ability to create and manage resources in your Retool organization.
- OpenAI API key (optional): An API key from your OpenAI account if you want to use your own key. New Retool organizations automatically include an OpenAI resource with a Retool-managed key.
Create an OpenAI resource
Create a resource to connect Retool to OpenAI and configure authentication. Once connected, you can then select it when writing queries to make use of its available models.
Follow these steps to create an OpenAI resource in Retool.
1. Create a new resource
Navigate to Resources in the main navigation and click Create new > Resource and search for OpenAI. Then, click the OpenAI tile to create a new resource.
2. Configure connection settings
Specify a name for the resource that identifies it within your organization. Include a description that can provide more context to users and Assist about how to use the resource.
3. Configure authentication

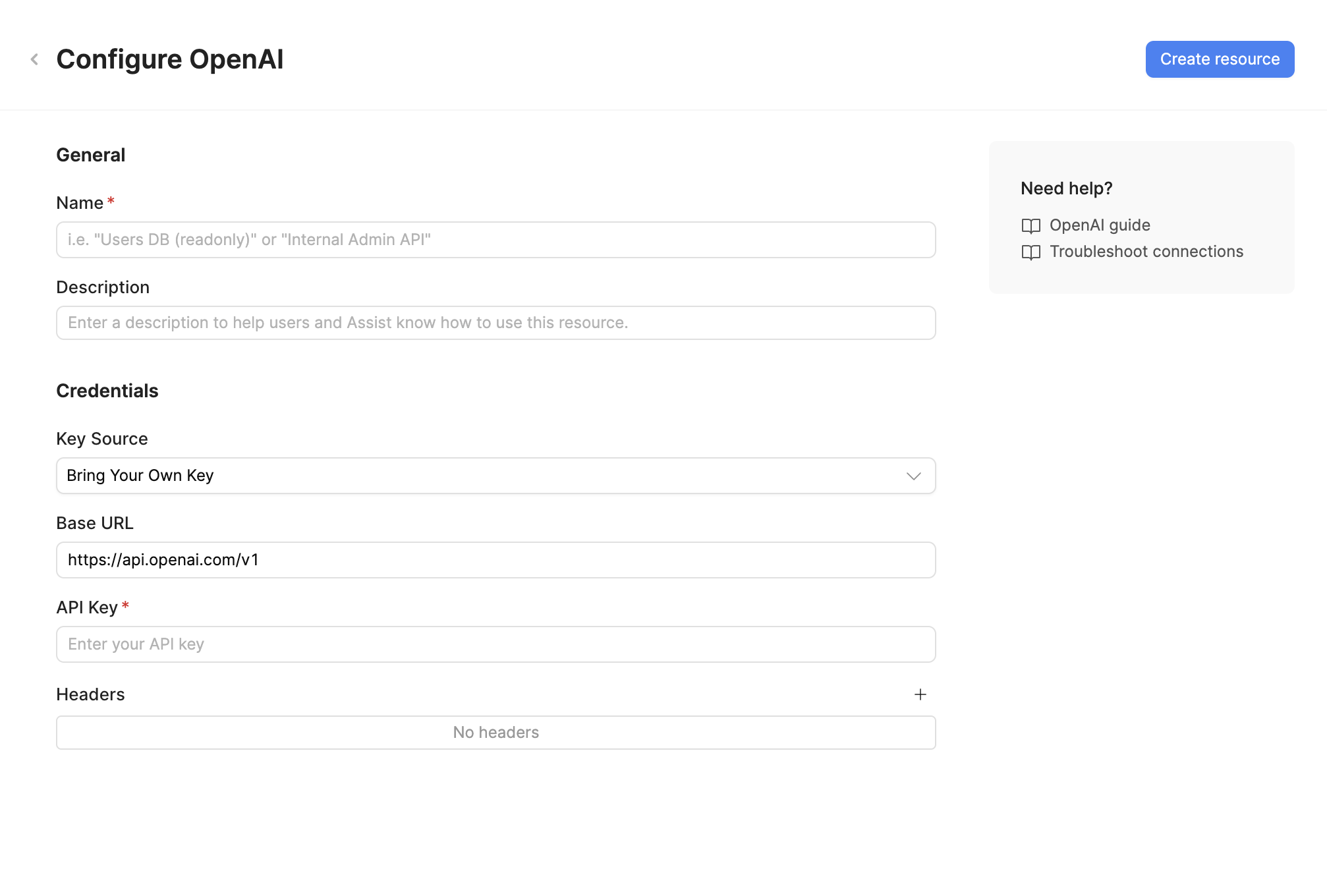

OpenAI resources support two authentication options: Retool-managed keys or customer-provided keys (Bring Your Own Key).
- Retool-managed
- Bring Your Own Key
Retool organizations include an OpenAI resource with a Retool-managed key by default. This allows you to use GPT models immediately without providing your own API key. Retool maintains a direct relationship with the AI provider and bills you directly for AI usage.
To use a Retool-managed key:
- Set Key Source to Retool Managed.
Retool uses customer-provided keys to interact with OpenAI. You are billed directly by the AI provider for any usage of the resource.
- Set Key Source to Bring Your Own Key.
- Base URL (optional): The OpenAI API endpoint. Default is
https://api.openai.com. Only change this if you're using a custom endpoint or proxy. - API Key: Your OpenAI API key from the OpenAI Platform.
- Organization ID (optional): Your OpenAI organization ID if you belong to multiple organizations.
- Headers (optional): Custom HTTP headers to include with requests. Add headers as key-value pairs if required by your setup.
Retrieve your API key from the API Keys page in your OpenAI account.
Where possible, create dedicated API keys for Retool to best manage and revoke access without disruption. All API keys used with Retool are .
4. Save the resource
Click Create resource to save your OpenAI resource. The resource is now available for use in apps and workflows.
AI resources do not have a Test connection button. Verify your configuration by creating a query and running it in your app or workflow.
Query OpenAI data
Create queries against your OpenAI resource to interact with GPT and DALL·E models in your Retool apps and workflows.
Create a query

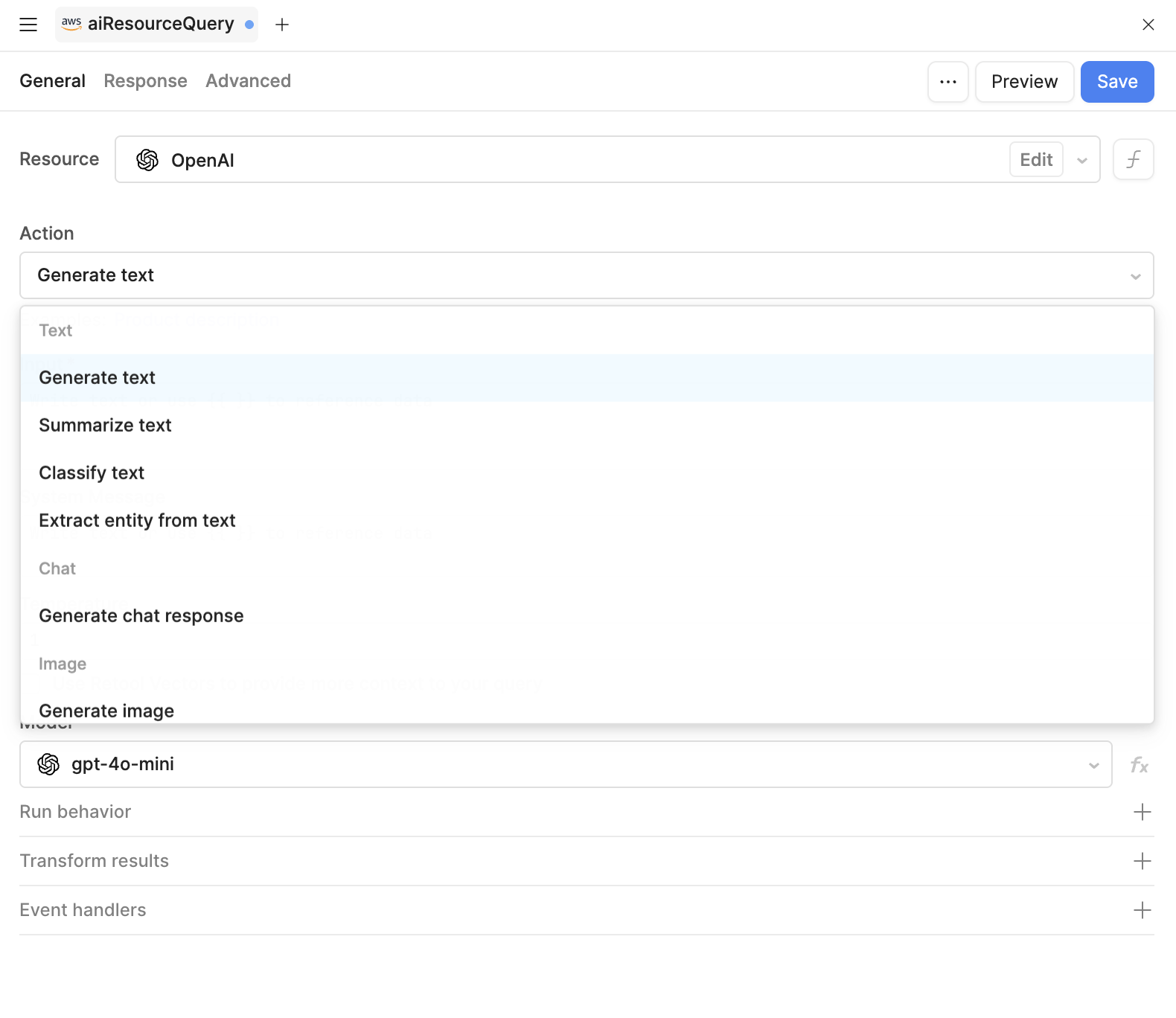

In your Retool app or workflow, create a new query and select your OpenAI resource from the resource dropdown. Choose an action type to configure what you want the AI to do.
Action types
OpenAI resources support the following action types:
Text actions
Process and generate text using GPT's language understanding capabilities.
| Action | Description |
|---|---|
| Generate text | Create original text content based on your prompt. Use for content generation, creative writing, code generation, and general-purpose text tasks. |
| Summarize text | Condense long-form content into concise summaries. Specify the input text and desired summary format. |
| Classify text | Categorize text into predefined categories. Provide the text to classify and the possible categories. |
| Extract entity from text | Extract specific information from unstructured text. Define what entities or data points to extract (names, dates, amounts, etc.). |
Chat actions
Generate conversational responses based on message history and context.
| Action | Description |
|---|---|
| Generate chat response | Create contextual responses in multi-turn conversations. The AI model considers previous messages to maintain conversation flow. |
Vision actions
Analyze and understand images using GPT's multimodal capabilities.
| Action | Description |
|---|---|
| Generate text from image | Analyze images and generate descriptive text. Upload an image or provide an image URL, then ask questions or request analysis. Available with GPT-4o and GPT-4 Turbo models. |
| Caption image | Generate descriptive captions for images. Provide an image and optionally specify the caption style or focus. |
| Classify image | Categorize images into predefined categories. Available with vision-capable models. |
| Extract entity from image | Extract specific information from images (text, objects, data). Available with vision-capable models. |
Image generation actions
Create images from text descriptions using DALL·E.
| Action | Description |
|---|---|
| Generate image | Create images from text descriptions using DALL·E models. Specify image size, style, and quality parameters. |
Configuration options
You can configure the following options when querying an OpenAI resource.
| Option | Description |
|---|---|
| Model | The OpenAI model to use. Different models offer different capabilities, speeds, and costs. Refer to the Supported models section for available options. |
| Temperature | Determines the randomness in responses. Accepts a decimal number between 0.0 to 2.0. Lower values (0.0-0.3) are more focused and deterministic. Medium values (0.4-0.7) are balanced. Higher values (0.8-2.0) are more creative. |
| System message | Provides detailed instructions for the model's behavior. Use it to define the model's role, response format, or domain expertise. The system message only needs to be defined once and applies to all interactions. It's useful for keeping longer instruction sets separate from the prompt or other values. |
| Prompt | The main input or question for the model. Can use {{ }} dynamic expressions to reference component values or query data. |
| Stream response | Controls whether responses appear incrementally or all at once. When enabled (default), text appears in real-time as the LLM generates it. If disabled, the query data value is only populated once the LLM has finished responding. Configure this option in the Advanced tab. |
Temperature is not supported for GPT-5 models. The temperature is automatically set to 1.0 and cannot be adjusted.
You are a helpful SQL expert. Provide concise, accurate answers with code examples when relevant.
Analyze this feedback: {{ feedbackTextarea.value }}
Common use cases
The following examples demonstrate typical OpenAI integrations in Retool apps.
Summarize customer feedback
Create a query that analyzes customer feedback and extracts key insights.
Query example
| Setting | Value |
|---|---|
| Model | gpt-4-turbo |
| Temperature | 0.3 |
You are a customer insights analyst. Analyze feedback and provide structured summaries with sentiment, key themes, and actionable recommendations.
Use an LLM Chat component to build the conversation, or provide the prompt directly:
Analyze this customer feedback and provide:
1. Overall sentiment (positive/negative/neutral)
2. Key themes (list 3-5)
3. Actionable recommendations (list 2-3)
Feedback: {{ feedbackTextarea.value }}
Use this query with a Text Area component for input and a Text component to display the summary.
Generate SQL from natural language
Convert natural language questions into SQL queries for your database.
Query example
| Setting | Value |
|---|---|
| Model | gpt-4-turbo |
| Temperature | 0.2 |
You are a SQL expert. Convert natural language questions into PostgreSQL queries. Return only the SQL query without explanations. Use the following schema: Tables: customers (id, name, email, created_at), orders (id, customer_id, total, status, order_date), products (id, name, price, category)
Reference the user's input directly in your prompt:
{{ questionInput.value }}
Chain this query with a PostgreSQL query that executes the generated SQL to display results.
Extract structured data from text
Parse unstructured text and extract structured information in JSON format.
Query example
| Setting | Value |
|---|---|
| Model | gpt-3.5-turbo |
| Temperature | 0.1 |
Extract structured information from the provided text and return ONLY valid JSON. No explanations or additional text.
Extract the following information from this invoice text and return as JSON:
- invoice_number
- date
- vendor_name
- total_amount
- line_items (array of {description, quantity, unit_price})
Invoice text:
{{ invoiceText.value }}
Use the response in a Table component or process it with JavaScript transformers.
Content generation with brand voice
Generate marketing content that matches your brand's tone and style.
Query example
| Setting | Value |
|---|---|
| Model | gpt-4-turbo |
| Temperature | 0.7 |
You are a marketing copywriter for a sustainable fashion brand. Our voice is: Friendly and approachable, Passionate about sustainability, Authentic and transparent, Informative but not preachy. Write engaging product descriptions that highlight both style and environmental impact.
Write a product description for: {{ productNameInput.value }}
Key features:
{{ productFeaturesTextarea.value }}
Length: ~100 words
Display the generated content in a Rich Text Editor component for review and editing.
Analyze images with vision models
Use GPT-4 Vision to analyze and describe images.
Query example
| Setting | Value |
|---|---|
| Model | gpt-4-vision-preview |
| Temperature | 0.3 |
You are an image analysis expert. Describe images in detail, focusing on key elements, composition, and any text present.
[
{
role: "user",
content: [
{
type: "text",
text: "Analyze this image and provide: 1) Main subjects, 2) Notable details, 3) Any text visible"
},
{
type: "image_url",
image_url: {
url: {{ imageUpload.value[0].base64 }}
}
}
]
}
]
Combine with a File Input component to allow users to upload images for analysis.
