Embed web apps

Learn how to embed Retool web apps with optional authentication.

You can embed your Retool web apps within your existing web-based applications, such as an internal metrics dashboard or customer support tool. Retool provides React and JavaScript SDKs to make the process seamless, and lets you authenticate users in a variety of ways to make sure access to data is secure.

Prerequisites

Follow these recommendations to ensure a seamless experience.

Use the same domain

Use the same top-level domain for your Retool organization as the parent app in which you want to embed. For example, retool.example.com and app.example.com.

  • Retool Cloud: Refer to the custom domain guide for instructions on configuring DNS settings.
  • Self-hosted Retool: Refer to your cloud provider for instructions on configuring your domain, if necessary.

Use HTTPS for embed URLs

If you intend to use custom authentication with Retool API, ensure that all URLs use HTTPS.

Install an SDK

You can embed apps using Retool's React or JavaScript SDKs.

The following example demonstrates embedding an app using the React SDK. It includes some additional data that is passed to the embedded app.

import React from 'react';
import Retool from "react-retool";

const sampleData = { name: 'Sample data' }
const url = 'your_app_url'

const App = () => {
return
<>
<Retool
url={url}
data={sampleData}
onData={(data) => mockFunction(data)}
/>
<>
}

See the react-retool documentation for more information.

Pass data between embedded and parent apps

Embedded Retool apps can use the data property and Parent Window queries to read values from the parent application. They can also use JavaScript queries to pass data back to the parent app using the browser's postMessage API.

Pass data to an embedded app

Data you pass using the data property is made available to the embedded app using Parent Window queries. You add this query to your embedded app and reference the data key in the Selector field. If you aren't using either the React or JavaScript SDK, the selector can be a CSS property.

Pass data to the parent app

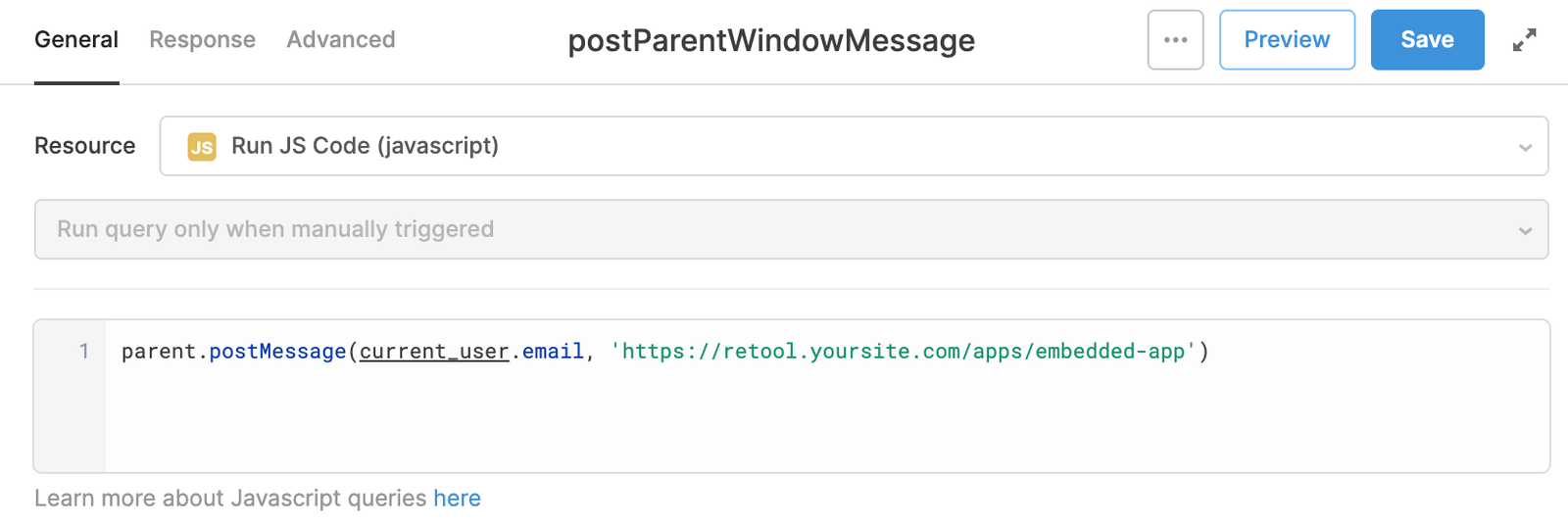

To pass data to the parent app, add a JavaScript query and use the postMessage API to send the data. For example, a query that sends the email address of the current_user to the parent app might look like this.

Posting a message to the parent application.

On the parent application side, write a JavaScript statement to listen and handle these messages. The following example uses window.addEventListener() to log the received message to the console.

window.addEventListener(
"message",
function (e) {
console.log("Parent window received: ", e.data);
},
false,
);

The code to handle postMessage requests depends on your specific implementation.

Authenticate users in embedded apps

Users within your Retool organization sign in to an embedded app as they would when accessing the app normally. If you currently use Retool authentication (i.e., you manage users directly in Retool), this can result in users needing to sign in to both the parent app and then Retool.

To avoid this double-authentication flow, you can implement SSO using a supported identity provider or a custom authentication flow using Retool API.

SSO

If your parent application uses SSO with an identity provider (idP) that Retool supports, configuring your Retool organization to use the same idP will allow users to seamlessly authenticate with embedded apps. Since authentication is handled by the idP, both the parent application and Retool organization share the same authentication state.

You can also map groups and roles from your idP into Retool to centralize user management. An added benefit of this approach is that all of your users can also sign into the Retool organization on the web using SSO.

Certain Identity Providers like Okta prevent embedding of third-party applications. You may need to add the domain on which you're hosting Retool as a trusted origin.

Automatically sign in users

You can configure Retool to automatically sign users in without showing the login screen. This occurs whenever a user has an existing, authenticated session on the IdP.

To configure this, navigate to your organization's Single Sign-On settings and enable Trigger Login Automatically. Self-hosted organizations can also configure this by setting one of the following environment variables to true in the docker.env file.

  • SAML: TRIGGER_SAML_LOGIN_AUTOMATICALLY
  • OIDC: TRIGGER_OAUTH_2_SSO_LOGIN_AUTOMATICALLY

Custom authentication with Retool API

If your parent application uses a different authentication method, such as username and password, you can integrate custom authentication using the Retool API. When a user successfully authenticates, your backend makes an API request to Retool that generates a secure, single-use URL. Opening this URL then authenticates the user without the need for them to sign in again.

To perform custom authentication with Retool API, you need to:

  1. Generate an access token so you can create sessions for embedding apps.
  2. Create permission groups for your users so you can give them access to apps.
  3. Create an embed URL to use when embedding Retool apps into your parent app.
  4. Use the embed URL to display the app.

The process to generate the URL happens between your web app's and Retool's backend.

Authentication flow

When your web application authenticates a user, using your preferred authentication method, your backend must make a request to Retool to generate an embed URL. This embed URL is a secure, single-use link that can be used anywhere in your product. To generate and use the embed URL to securely embed Retool apps inside your web app, you need to make some small updates to the frontend and backend parts of your codebase. The following diagram illustrates the authentication flow.

See the GitHub repository for a live demo.

1. Generate an access token

To embed apps, you need to create an access token with the Embed scope. This token allows you to create sessions for embedding Retool apps.

You can create API tokens with the Embed scope in the API settings for your organization.

  1. Go to Settings > API and click Create new to generate an access token.
  2. Enter a name and description, then select the required scopes.
  3. Copy and save your token, as you can only access it once.
Creating a token with the Embed scope

2. Create permission groups for your users

Permission groups determine the apps users can access. Depending on your use case, you might need to create more than one permission group.

To create a permission group:

  1. Navigate to the Permission Groups page at /settings/permissions.
  2. Click Create new in the top right and complete the form to create a group.
  3. Optionally add internal users on the Members tab by clicking + Add new members. External users are added later, in the POST request to your embed URL.
  4. On the Apps tab, enable Use access to the apps you want users to have access to.
Giving users access to apps

Make sure to note down the group IDs you want to give access to. You can find a group's ID by hovering over the group, clicking the ••• menu, and then selecting Copy group ID.

Copying the group ID

3. Create an embed URL

The embed URL is a single-use link to a Retool app for an authenticated user. Your backend sends a POST request to /api/embed-url/external-user with a few parameters, and Retool returns the URL. This URL is then used by your frontend to display the app.

The table below outlines the parameters you can send, and whether they're required.

ParameterRequiredDescription
landingPageUuidYesA string to specify the page in the Retool app to render. You can find the landingPageUuid by opening the app and using the Command Palette (opened with ctrl k) to select Copy app UUID.
groupIdsYesAn array of integers specifying the Retool group IDs to allow.
sessionDurationMinutesNoThe session token's duration, in minutes. If unset, defaults to 1440 (1 day). Values from 10 to 43200 (30 days) are accepted.
externalIdentifierYesA string or integer unique identifier for the external user.
userInfoNoUser profile information. Can contain string fields for email, firstName, and lastName.
metadataNoA string with additional metadata. Can be at most 1KB of stringified JSON.
environmentNoA string to specify an environment for the app to run in.
branchNoA string to specify a branch to be displayed. You can't display both releaseVersion and branch.
releaseVersionNoA string to specify a release to be displayed. Defaults to latest but you can pass version numbers too (e.g.,1.0.0). You can't display both releaseVersion and branch.
POST request examples

Below are a few example POST requests. Because frameworks vary, only cURL and Python examples are provided.

You need to replace APP_UUID, GROUP_IDs, and UUID in the cURL example for it to work. See the request parameters section for more information.

// Replace APP_UUID, GROUP_IDs, UUID with
curl -X POST "https://retool.example.com/api/embed-url/external-user" \
-H "Authorization: Bearer retool_01hn417x8zsaqfye58r995re18" \
-H "Content-Type: application/json" \
-d '{ "landingPageUuid": APP_UUID, "groupIds": GROUP_IDs, "externalIdentifier": UUID}'

If you need to make sure users can only see data specific to them, see the Control access and app behavior with metadata section.

4. Use the embed URL to display the app

On your frontend, use the Retool React component or the Retool Embed SDK to render the embed URL. Below is a sample request your frontend would make to your backend.

const RetoolWrapper = ({ retoolAppName, userJwt }) => {
const [retoolEmbedUrl, setRetoolEmbedUrl] = useState("");

useEffect(() => {
const options = {
method: "POST",
headers: { "Content-Type": "application/json" },
body: JSON.stringify({ userJwt, retoolAppName }),
};
fetch("/api/embedUrl", options)
.then((res) => res.json())
.then((data) => {
setRetoolEmbedUrl(data.embedUrl);
});
}, [retoolAppName]);

return (
retoolEmbedUrl && (
<Container maxWidth={false} disableGutters>
<Retool url={retoolEmbedUrl} />
</Container>
)
);
};

6. Control data access with metadata

You can pass information in the metadata object to dynamically control the data users see and behavior within an application. These variables are added to the current_user.metadata object when the embed URL is generated.

Because Prevent Query Spoofing is turned on, the metadata associated with the current user cannot be spoofed. Retool will reject any requests if a bad actor alters any metadata values passed in via the POST request above.

7. Testing

When generating the embed URL, Retool may create an additional user depending on the data that is passed into your POST request.

To avoid creating an extra user while testing, pass in the email associated with your Retool account in the email property of the userInfo object, as well as the IDs of the permission groups you’re in.

If an email is specified and it matches that of an existing Retool user, Retool will update the user, its metadata, and permission groups. Otherwise it will create a new user if this email does not exist.

If no email is specified, Retool updates the user if the externalIdentifier matches, or creates a new user if the externalIdentifier does not exist.

Embed apps as an IFRAME

Public apps are only available on Retool Cloud with Business and Enterprise plans.

If you cannot use an SDK to embed apps, you can still embed an app as an IFRAME. Click Share > Copy embed code in the App IDE to copy the embed code. This method lacks some of the features available in the SDK but can allow users to authenticate by signing in.

If you don't need to add authentication because your apps surface no user-specific data, you can enable public access. You can share this link directly with users or embed the app in other web apps. These apps can be accessed by anyone on the internet and always reflect the production environment of the app.

To create a Public access link, open an app in the App IDE and click the Share button in the top right. Select the Public tab and click Enable public link.

Enabling a public access link
