Connect to Amazon SQS

Connect Amazon SQS to Retool and send, receive, and manage queue messages.

Amazon SQS is a managed message queuing service for decoupling and scaling distributed systems.

What you can do with Amazon SQS in Retool​

After you create an Amazon SQS resource in Retool, you can:

  • Send messages to a queue.
  • Receive and delete messages from a queue.
  • List and manage queues.
  • Build admin panels and dashboards on top of queue data.

Before you begin​

To connect Amazon SQS to Retool, you need the following:

  • AWS IAM credentials: An access key ID and secret access key with SQS permissions, or an IAM role to assume.
  • Retool permissions: Ability to create and manage resources in your organization.

Create an Amazon SQS resource​

Follow these steps, in order, to create an Amazon SQS resource in Retool.

Create a new resource​

In your Retool organization, navigate to Resources in the main navigation and click Create new → Resource. Search for SQS and click the Amazon SQS tile to begin configuration.

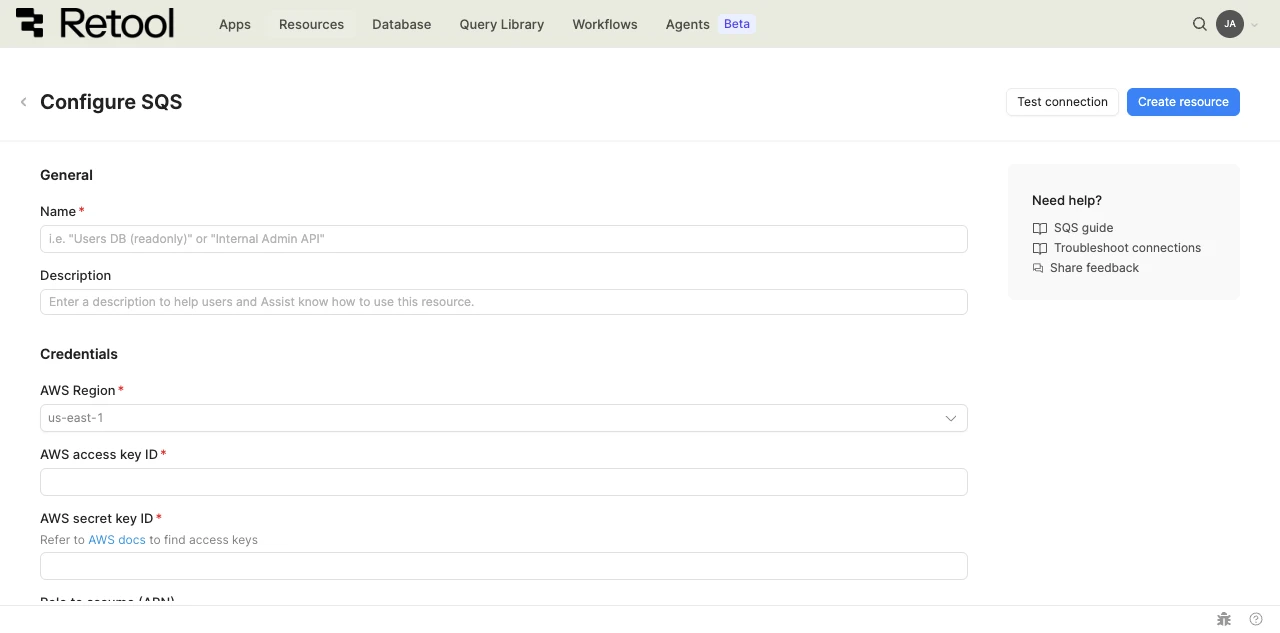

Amazon SQS resource configuration form.

Configure general settings​

Specify a name and description for the resource that indicates which AWS account or queue set it connects to. The description provides more context to users and Assist about how to use the resource.

Example nameExample description
SQS (Order processing)Sends and receives order-processing messages.
SQS (Background jobs)Queues background job messages for the internal admin panel.

Configure resource credentials​

AWS region​

Select the AWS region of the SQS queues you want to connect to.

Example
us-east-1

Queue name prefix​

Optionally, provide a prefix to filter which queues appear when listing queues from this resource.

Example
my-app-

Configure authentication​

Choose a primary authentication method based on your deployment type. All methods support an optional Role to assume (ARN) field. If provided, Retool uses your primary credentials to call sts:AssumeRole on the specified role before accessing SQS.

Authentication methodUse cases
Access key + secret keyStandard authentication with IAM user credentials. Available for all deployment types. Most common for initial setup and when running outside of AWS.
Default credential provider chain (self-hosted only)Automatic credential discovery from your environment. Recommended when Retool runs on AWS infrastructure with an EC2 instance profile, ECS task role, or EKS service account.

Cloud organizations authenticate using Access key + secret key.

Create an IAM user or service account in the AWS IAM console and attach a policy that grants the necessary SQS permissions, then create an access key ID and secret key for it. Paste them into the AWS access key ID and AWS secret key ID fields.

Example IAM policy for SQS access
IAM policy with SQS permissions
{
  "Version": "2012-10-17",
  "Statement": [
    {
      "Effect": "Allow",
      "Action": [
        "sqs:SendMessage",
        "sqs:ReceiveMessage",
        "sqs:DeleteMessage",
        "sqs:GetQueueAttributes"
      ],
      "Resource": "arn:aws:sqs:us-east-1:123456789012:my-queue"
    },
    {
      "Effect": "Allow",
      "Action": "sqs:ListQueues",
      "Resource": "*"
    }
  ]
}

sqs:ListQueues doesn't support resource-level permissions, so it must use a wildcard Resource in its own statement.

If you entered a role ARN above, configure the role's trust policy to allow your IAM user to assume it.

Test the connection​

Click Test connection to verify Retool can connect to Amazon SQS. If the test succeeds, you see a success message. If it fails, check the following:

  • AWS region: Confirm the region matches where your SQS queues are located.
  • IAM credentials: Verify the access key and secret key are correct and have not expired.
  • IAM permissions: Confirm the IAM user or role has the necessary SQS permissions.
  • Role ARN: If assuming a role, confirm the role's trust policy allows your credentials to assume it.

Save the resource​

Click Create resource to save your Amazon SQS resource. You can now use it in queries across your Retool apps and automations.

Interact with Amazon SQS data​

Once you've created an Amazon SQS resource, you can interact with Amazon SQS data using Retool.

Caution

Amazon SQS isn't yet supported in the new app builder. Use a classic app, workflow, or agent instead.

For classic apps, workflows, and agents, refer to the resource query documentation to learn how to write a query.

Best practices​

Follow these best practices to maintain the security of your Amazon SQS resource.

  • Apply least privilege: Scope the IAM policy to only the SQS actions and queues the resource needs, rather than granting broad SQS access.
  • Use role assumption for cross-account access: When accessing queues in another AWS account, use the Role to assume (ARN) field rather than sharing long-lived credentials across accounts.
  • Rotate credentials regularly: Rotate access keys on a regular schedule, and immediately if a key is ever exposed.
  • Use resource environments: Organizations on an Enterprise plan can configure multiple resource environments to maintain separate AWS credentials for production, staging, and development.
