Retool AI AppGen

The following lab demonstrates how to prompt a delivery application using Retool App Builder, Retool Database as a resource, and database schemas to generate the app.

Requirements

• Retool Cloud
• Retool Database
• Download the following CSV files:
  • Download int_delivery_summary.csv
  • Download int_orders.csv
  • Download int_warehouse.csv
  • Download int_provider.csv

Steps

Setup Retool Database

Before we prompt an application, we want to create a series of tables with sample data. This will provide App builder with additional context as it constructs the app. The tables are:

1. int_delivery_summary - this represents a single view of the order_date , delivery_date , order , warehouse , and provider.
2. int_orders - this captures the orders including customer_name, customer_location, and product_sku.
3. int_warehouse - this captures the available warehouses, including warehouse_name, warehouse_location.
4. int_provider - this captures the available delivery providers, including provider_name, provider_truck_vin, and provider location.

The relationships are:

1. int_delivery_summary has many-to-one relationship with int_orders (can have multiple deliveries for the same order)
2. int_delivery_summary has one to one relationship with int_provider
3. int_delivery_summary has one to one relationship with int_warehouse

Import CSV(s) into new table(s)

With the prior information, we will create the schemas using CSV imports into a new table.

int_delivery_summary table

• Select Retool Home > Retool Database > + (Import CSV into new table) > select int_delivery_summary.csv.
• Make sure the table name is int_delivery_summary.
• Update the column types to match the arcade video below.

The following demonstrates the previous steps:

int_order table

• Select + > Import CSV into new table and the file int_order.csv.
• Make sure the table name is int_orders.
• Update the column types per the table below.

CSV Column	Database Column	Column Type
id	id	int4
customer_name	customer_name	text
customer_location	customer_location	text
product_sku	product_sku	text

int_warehouse table

• Select + > Import CSV into new table and the file int_warehouse.csv.
• Make sure the table name is int_warehouse.
• Update the column types per the table below.

CSV Column	Database Column	Column Type
id	id	int4
warehouse_name	warehouse_name	text
warehouse_location	warehouse_location	text

int_provider table

• Select + > Import CSV into new table and the file int_provider.csv.
• Make sure the table name is int_provider.
• Update the column types per the table below.

CSV Column	Database Column	Column Type
id	id	int4
provider_name	provider_name	text
provider_truck_vin	provider_vin	text
product_location	product_location	text

Update int_delivery_table to have foreign keys

Now with all the tables loaded, we need to associate the values in the int_delivery_summary to the int_orders, int_provider, and int_warehouse tables. Edit the int_delivery_summary table.

• Select the column (order_number) Settings > order_number.
• Change the Column type to Foreign key
• Change the Table to int_orders
• Change type to id (int4)
• Repeat this process to update the columns for logistics_provider, warehouse_location replacing table with (int_provider | int_warehouse).

The following demonstrates the previous steps:

Prompt a delivery application

Once the Retool Database is populated with the tables, we can now proceed to prompting an app using App builder.

• Go to Retool Home
• Select Apps > Create > App
• Update the name of the app from Untitled to new-delivery-app
• Specify the following prompt to generate a delivery application.

Create a delivery app for a customer support user where the order number, customer name,
warehouse name, and provider name are displayed. Use @Retool Database int_delivery_summary
table to get the necessary information. Create a search input field for filtering the table.
Set the table search property to “fuzzy search” and its value equal to the search input field property.
Keep all queries as simple as possible to make it more maintainable for the developer.

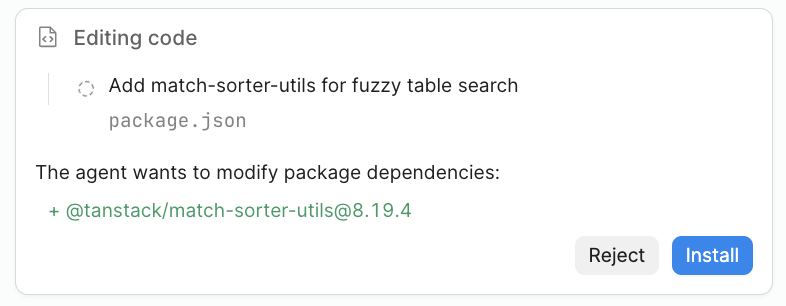

During the generation process, the fuzzy-search requirement may install an external library. Permission to add this to the app is presented in the chat panel.

Fuzzy-search library

• Select Install

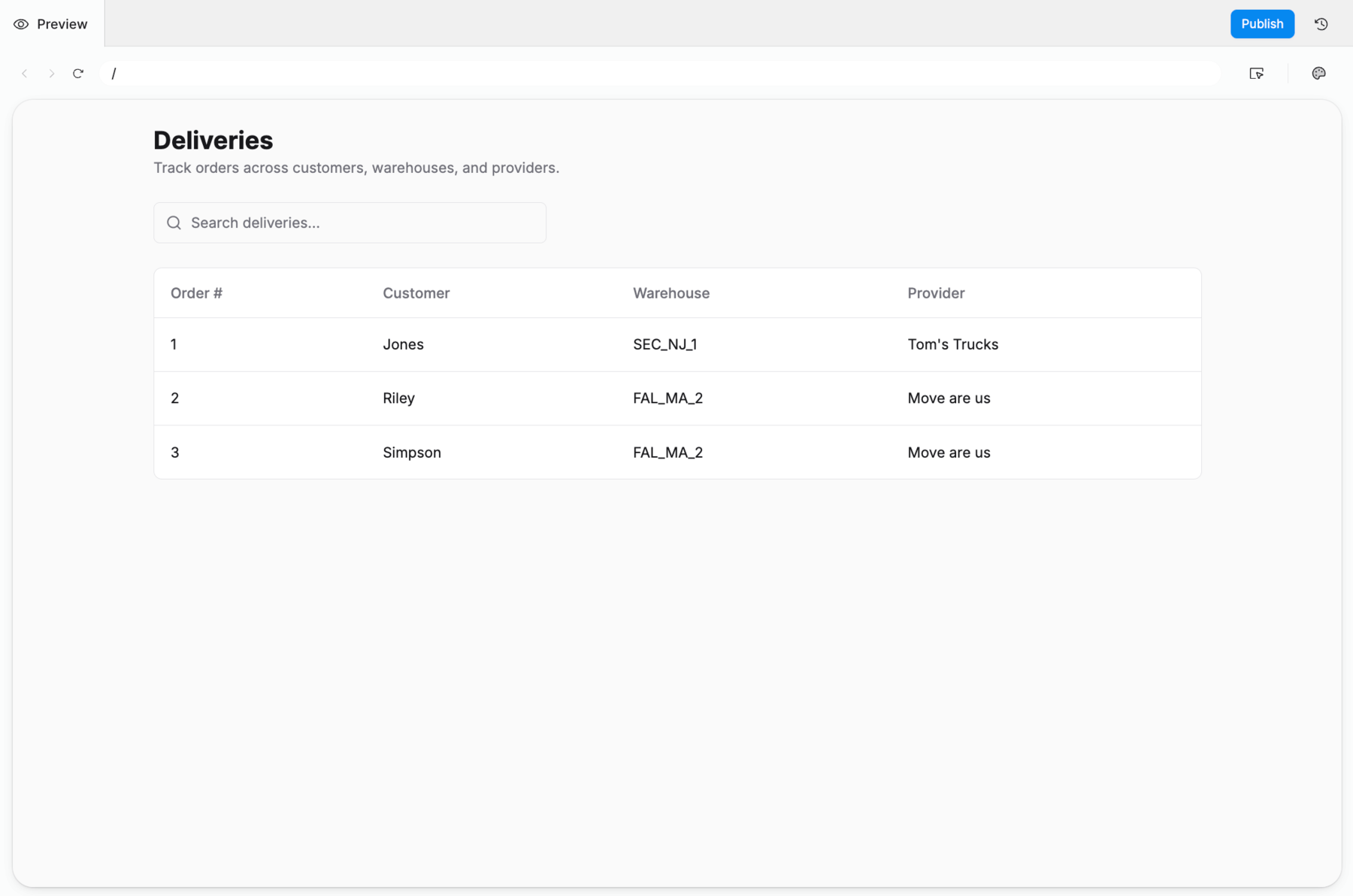

The prompt will continue to be processed resulting in an application displayed in the preview panel.

Generated app

Style the app

Now let's change the styling of the app to consider accessibility requirements. While this not a fully compatible application it demonstrates how an LLM can be used to help guide the app styling.

• Provide the following prompt to update the styling:

Please make this app support improved accessibility following WCAG 2.2 specification.

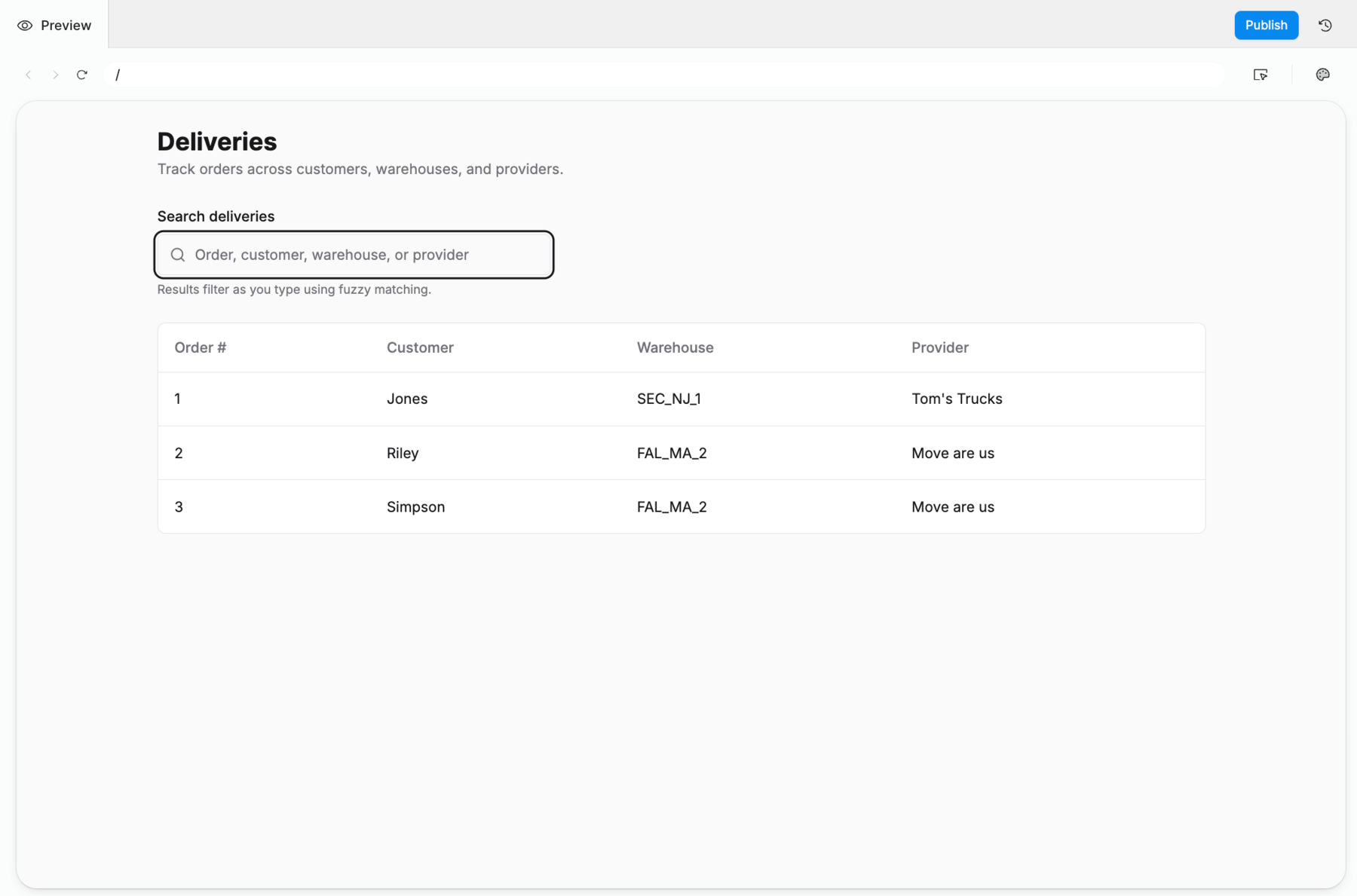

The following WCAG enhancements were added:

1. Bypass blocks (2.4.1): a "Skip to deliveries" link that becomes visible on keyboard focus.
2. Landmarks & structure: main, header, and a role="search" form so assistive tech can navigate regions.
3. Labels & relationships (1.3.1, 3.3.2, 4.1.2): the search box now has a real visible label, a described hint (aria-describedby), type="search", and aria-controls tying it to the table; the table has an aria-label and an sr-only caption.
4. Status messages (4.1.3): a polite live region announces the result count, loading, and error states as they change.
5. Error handling (3.3.1): errors render in a role="alert" banner instead of a silent table cell.
6. Meaningful content: empty cells expose "Not available" to screen readers while keeping the visual em dash decorative (aria-hidden), and all decorative icons are hidden from the accessibility tree.
7. Focus visibility (2.4.7): interactive elements keep visible focus rings (shadcn defaults plus the skip link's ring).

App with WCAG enhancements

Understand the app

Let's demonstrate the ability of the App builder to understand the application at a high-level and more detailed-level.

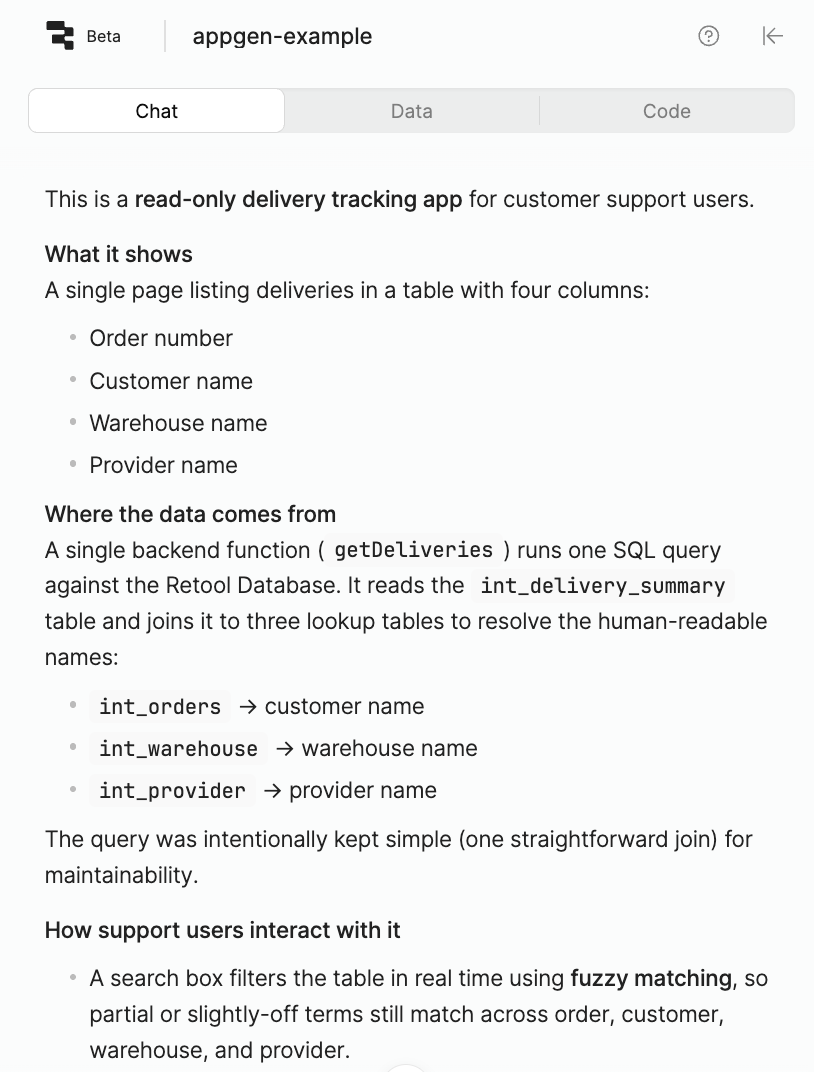

• Provide the following prompt for high-level overview:

Provide a high-level overview of what this app does.

This will display in the Chat tab, an explanation in response.

App summary

• You could dive deeper into the application asking specific questions on how the function pulls the data from the Retool Database

I am not a React expert so can you please explain how the Retool Database data is retrieved/displayed in this app?

This results in more explanation with the Chat tab. A small portion is displayed here:

The short version
Database → one SQL query in a server-side function → auto-generated hook delivers the rows to the page → the page fetches on open and feeds the rows into a table → the search box filters those rows in the browser.

If it's helpful, I can add short inline comments in Deliveries.tsx marking each of these steps so the code is easier to follow later.

Edit the app

We can edit applications via App builder using an edit prompt. The following is a simple example of changing the query to use ascending order vs. descending orer.

• Use the following prompt to change the query to make it use ascending format.

Please update orders to support either descending or ascending Order #.

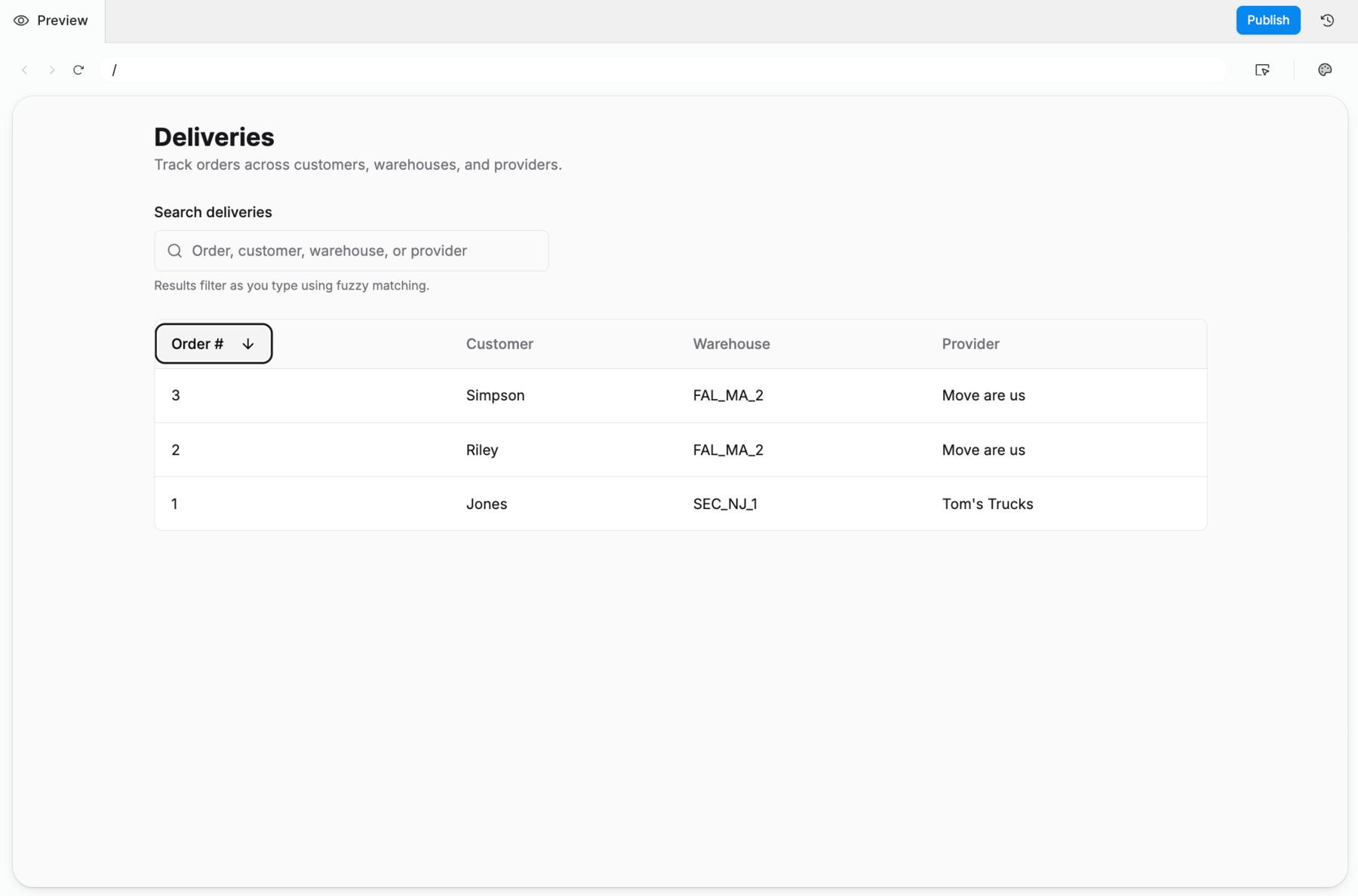

The resulting application provides a filter on the Order # column allowing the user to specify ascending or descending.

Ascending or descending filter

Summary

This lab demonstrated some of the prompt types available in App builder including create, edit, style, and understand. In addition debug and guidance prompts allow you to resolve issues when they occur along with requesting best practices or guidance in Retool.
