Configure Source Control with Bitbucket

Learn how to set up Source Control with Bitbucket.

Source Control Availability
CloudGenerally Available
Self-hosted Edge 3.33 or laterGenerally Available
Self-hosted Stable 3.33 or laterGenerally Available

You can use Source Control with Bitbucket Cloud to manage changes with pull requests.

Source Control does not currently support self-hosted Bitbucket Data Center instances.

Setup instructions​

  • In your docker.env file, set DISABLE_GIT_SYNCING=true and VERSION_CONTROL_LOCKED=false.
  • In the Settings > Advanced tab in Retool, remove the repository URL and branch name from your Git Syncing configuration.

Prerequisites​

This guide requires access to a Bitbucket account with permissions to create workspaces and repositories.

1. Create a new Bitbucket workspace and repository​

  1. Create a Bitbucket workspace for your Retool repository.
  2. Create a Git repository in Bitbucket for your Retool apps.
Create a new Bitbucket repository
Create a new Bitbucket repository

2. Create an access token for the repository​

  1. Create a Bitbucket access token for the repository.
  2. Under Scopes > Repositories, select Read, Write, Admin, and Delete. This gives the access token the ability to access and modify the repository containing your Retool apps.

3. Configure Bitbucket repository settings​

Go to the Source Control settings, and select Set up Bitbucket. Enter the following settings.

SettingDescriptionExample
Bitbucket WorkspaceThe name of the workspace you created for the Retool repository. This variable is case-sensitive.retool-workspace
Bitbucket RepositoryThe repo name in step 2.retool-apps
Bitbucket BranchRetool automatically tracks changes to this branchmain
Bitbucket URLThe domain used to access your self-hosted Bitbucket instance.https://bitbucket.org/
Bitbucket Enterprise API URLThe REST API route for your self-hosted Bitbucket instance. Defaults to https://api.bitbucket.org/2.0.https://api.bitbucket.org/2.0
Bitbucket Access TokenThe access token you created.loDJlwRetoolTYXOFbO

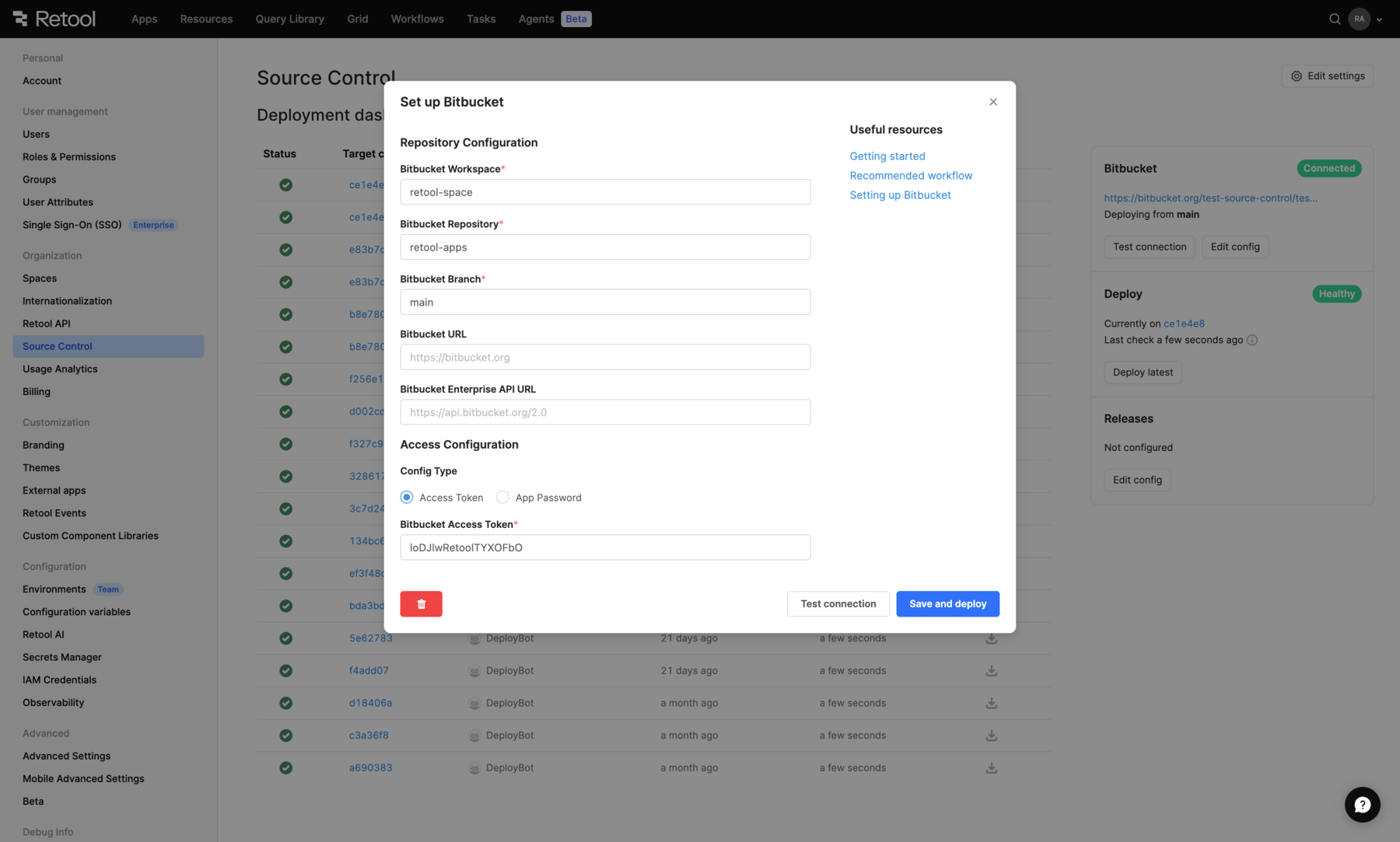

Configure Bitbucket settings on Retool
Configure Bitbucket settings on Retool

Secure credential management​

The Bitbucket Access Token field supports embedded expressions for secure credential management.

This feature is currently rolling to cloud instances and will be available in subsequent edge and stable releases. Toggle the Template variables in Source Control config feature flag in Settings > Beta to enable this feature.

  • You can reference configuration variables:
    {{ environment.variables.MY_KEY_OR_TOKEN }}
  • On self-hosted instances, you can also reference secrets from secrets managers:
    {{ secrets.MY_SECRET.KEY }}

The UI includes autocomplete and validation to help you use embedded expressions correctly.

4. Test your configuration​

After you set up your environment variables, if you’re an admin on your Retool instance, you can visit Settings > Source Control.

If your Bitbucket environment is correctly configured, the page will show your Bitbucket commits in the Deployment Dashboard section. You can also click the Test connection button, which sends a request to test the connection.

Deployment dashboard and test connection example
Deployment dashboard and test connection example

If you don't see the Deployment Dashboard and your Bitbucket commits on Settings > Source Control, check that your environment variables are correctly configured.

What's next?​

You are now ready to use source control. Learn how to create branches, pull requests, merging changes, and use other source control features in the getting started guide.
