Connect to ServiceNow

Connect ServiceNow to Retool and manage incidents, change requests, and records using the Table API.

ServiceNow is an IT service management platform for managing incidents, change requests, service catalog items, and other operational workflows.

After you create a ServiceNow resource in Retool, you can:

  • View, create, update, and resolve incidents across your ServiceNow instance.
  • Query and update change requests, approvals, and associated tasks.
  • Create and manage service catalog requests on behalf of users.
  • Access records from any ServiceNow table, including custom tables in your instance.
  • Transition records through workflow states by updating state fields directly.

Before you begin​

To connect ServiceNow to Retool, you need the following:

  • ServiceNow instance: An active ServiceNow instance with access to the Table API (/api/now/table).
  • ServiceNow credentials: A username and password with sufficient role permissions to read and write the tables you intend to query. The itil role provides read access to most service management tables.
  • Retool permissions: Own permissions for resources in your organization.

Create a ServiceNow resource​

Follow these steps to create a ServiceNow resource in your Retool organization.

1. Create a new resource​

In your Retool organization, navigate to Resources in the main navigation and click Create new → Resource. Search for ServiceNow and click the ServiceNow tile to begin configuration.

Use folders to organize your resources by team, environment, or data source type. This helps keep your resource list manageable as your organization grows.

2. Configure general settings​

Specify a name and description for the resource that indicates which ServiceNow instance it's for. The description provides more context to users and Assist about how to use the resource.

Example nameExample description
ServiceNowServiceNow instance for managing IT incidents and change requests.
ServiceNow ProdProduction ServiceNow instance. Use for incident management and CMDB queries.

3. Configure resource credentials​

Configure the connection settings for your ServiceNow resource.

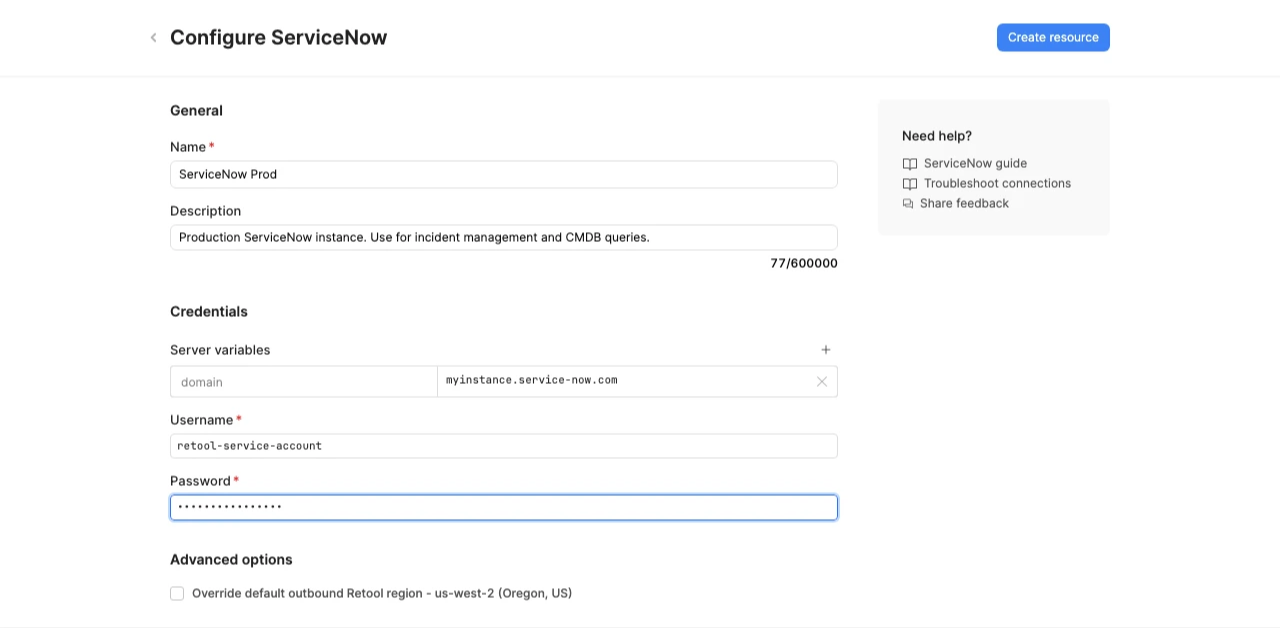

ServiceNow resource configuration.

Server variables​

Specify the hostname of your ServiceNow instance, without the https:// prefix. Replace myinstance with your organization's ServiceNow subdomain.

Example
myinstance.service-now.com

4. Configure authentication​

Provide the username and password of the ServiceNow account that Retool uses to make API requests.

Create a dedicated ServiceNow service account for Retool rather than using a personal user account. Assign only the roles required for the tables your apps will query, and rotate the password periodically.

5. Configure advanced options​

Configure optional settings available under the Advanced options section of the resource configuration form.

Outbound region​

If your organization uses outbound regions, select the region that should be used for requests to ServiceNow. This controls which geographic region your requests originate from.

6. Save the resource​

Click Create resource to save your ServiceNow resource.

ServiceNow resources cannot be tested from the resource configuration screen. Save the resource and verify your connection by running a query in a Retool app.

Query ServiceNow data​

Once you've created a ServiceNow resource, you can query it in apps, workflows, and agent tools.

Create a query​

You can create a ServiceNow query using Assist to generate queries with natural language, or manually by selecting an operation.

Use Assist to generate queries from natural language prompts.

To create a query with Assist:

  1. In the Retool app IDE, click the Assist button at the bottom of the left toolbar to open the Assist panel.
  2. Write a prompt describing the data you want to retrieve, referencing your resource using @.
  3. Press Enter to submit the prompt.
  4. Select your ServiceNow resource when prompted.
  5. Review the generated query and click Run query to add it to your app.
list all open incidents using @ServiceNow
create a new change request using @ServiceNow
get the incident with sys_id {{ table1.selectedRow.data.sys_id }} using @ServiceNow

Query configuration​

All operations require a Table name — the API name of the ServiceNow table to query (for example, incident, change_request, sc_request, problem, sys_user). To find a table's API name in ServiceNow, navigate to System Definition → Tables and look at the Name column.

Common parameters for Retrieve records from a table:

ParameterDescriptionExample
Sysparm queryEncoded query string to filter results.state=1^priority=1
Sysparm fieldsComma-separated list of fields to return.sys_id,number,short_description,state
Sysparm limitMaximum number of records to return.50
Sysparm offsetNumber of records to skip for pagination.{{ table1.page * 50 }}
Sysparm display_valueReturn display values instead of raw values for reference fields.true

For a complete reference of available operations and parameters, refer to the ServiceNow Table API documentation.

ServiceNow query examples​

These examples demonstrate the most common ServiceNow operations in Retool apps. For a complete reference of available operations and parameters, refer to the ServiceNow Table API documentation.

list and display open incidents

Create a ServiceNow query named listIncidentsQuery to list open incidents.

Configure the query:

FieldValue
OperationRetrieve records from a table
Table nameincident
Sysparm queryactive=true^state!=6^state!=7
Sysparm fieldssys_id,number,short_description,state,priority,assigned_to,opened_at
Sysparm limit100
Sysparm display_valuetrue

Add a Table component and set its Data property to {{ listIncidentsQuery.data }}.

Format the table columns:

  • State: Use a tag or badge formatter to color-code incident states.
  • Priority: Map numeric values to labels (1 = Critical, 2 = High, 3 = Moderate, 4 = Low).
  • Opened at: Use a date/time formatter to display the timestamp in your local timezone.
create an incident from a form

Add a Form component with inputs for the required fields: short description, description, urgency, and category.

Create a ServiceNow query named createIncidentQuery to create the incident.

Configure the query:

FieldValue
OperationCreate a record
Table nameincident

Set the Request body to:

{
  "short_description": {{ form1.data.short_description }},
  "description": {{ form1.data.description }},
  "urgency": {{ form1.data.urgency }},
  "category": {{ form1.data.category }},
  "caller_id": {{ current_user.email }}
}

Add an event handler to the form's Submit event that runs the create query and shows a success notification with the new incident number from {{ createIncidentQuery.data.number }}.

update an incident's state

First, add a Select component (stateSelect) with options mapped to ServiceNow state values:

LabelValue
New1
In Progress2
On Hold3
Resolved6
Closed7

Create a ServiceNow query named updateIncidentQuery to update the selected incident.

Configure the query:

FieldValue
OperationUpdate a record
Table nameincident
Sys ID{{ table1.selectedRow.data.sys_id }}

Set the Request body to:

{
  "state": {{ stateSelect.value }}
}

Add an event handler to the Change event of the Select component that runs the update query and then re-runs the incidents list query to refresh the table.

query change requests by approval state

Create a ServiceNow query named listChangeRequestsQuery to list change requests pending approval.

Configure the query:

FieldValue
OperationRetrieve records from a table
Table namechange_request
Sysparm queryapproval=requested^active=true
Sysparm fieldssys_id,number,short_description,state,approval,requested_by,start_date,end_date
Sysparm display_valuetrue
Sysparm limit50

Add a Table component and set its Data property to {{ listChangeRequestsQuery.data }}.

Best practices​

Follow these best practices to optimize performance, maintain security, and ensure data integrity when working with ServiceNow.

Performance​

  • Select specific fields: Use the Sysparm fields parameter to return only the columns your app needs. ServiceNow records can have many fields; limiting the response reduces payload size and improves load times.
  • Use encoded queries: Filter records server-side using Sysparm query rather than fetching all records and filtering in JavaScript. ServiceNow's encoded query syntax supports complex filters across related fields.
  • Paginate large result sets: Use Sysparm limit and Sysparm offset together to paginate results. Avoid fetching more records than your UI can display.
  • Cache read-only queries: For data that doesn't change frequently (such as reference data or user lists), enable query caching to reduce API calls.
  • Use display_value selectively: Setting Sysparm display_value to true returns human-readable labels for reference fields but increases response size. Enable it only when you need resolved display values in your UI.

Security​

  • Use a dedicated service account: Create a ServiceNow user account specifically for Retool integrations. Assign only the roles required for the tables your apps use, and avoid using admin or privileged accounts.
  • Protect sensitive query values: If you pass sensitive values through query request bodies or component inputs (such as API tokens used at query time), store them in configuration variables or secrets to avoid exposing them as clear text.
  • Use resource environments: Configure separate ServiceNow resources for production and non-production instances using resource environments to prevent accidental writes to production data.
  • Validate user input: Sanitize and validate all form inputs before including them in query request bodies to prevent injection via the API payload.

Data integrity​

  • Prefer Update over Modify: Use the Update a record operation (PATCH) rather than Modify a record (PUT) unless you intend to clear all unspecified fields. PATCH only modifies the fields you provide.
  • Confirm destructive actions: Add confirmation dialogs before running queries that delete records or make bulk updates. Use Retool's Show confirmation modal event action.
  • Handle errors gracefully: ServiceNow returns structured error responses. Configure error notifications and fallback behavior for failed queries so users receive clear feedback when an operation fails.
  • Verify response data: Check {{ query.data }} structure after writes — ServiceNow returns the updated record on successful create and update operations, which you can use to confirm the change was applied.
