Lab 1 - Customer app with reservation using canvas

Goal

The Flash customer web app will serve as the portal for customer actions. In this lab, we are focusing on creating a reservation form so we can capture a customer’s intent on ordering a bike.

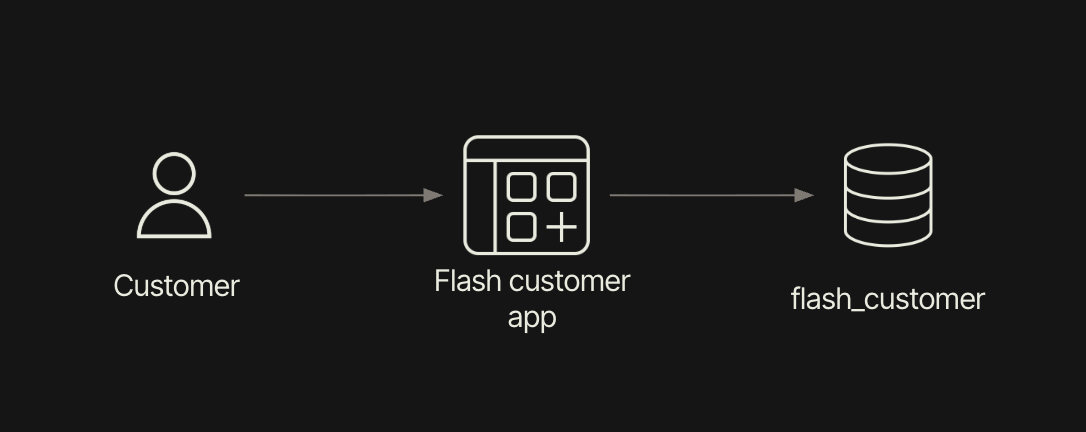

Customer app

Flash Customer Table

In this step, you will manually create a Retool database table.

• Select Retool Home > Database.
• Select + and a form will appear as follows:

Create Table

• Use Add column to build the following schema:

Column name	Type
email	Text
first_name	Text
last_name	Text
street_address	Text
state	Text
phone	Text
reservation	Checkbox
date	Date (NOW())

Flash customer app using canvas

Let’s build the flash customer web app/reservation page.

• Select Retool Home > Apps > Create app
• Change the name of the app to flash-customer-app

Create Navigation Bar

Let’s create a header to support navigation.

• In the left panel, select Component tree > Global > + > Header
• Change the Header select from Page 1 to Reserve.
• Select the navigation1 component and rename to navigationCustomer.
• Under Content > Mode select Manual.
• Under Menu items, delete Settings and Customers. Change Home to Reserve.
• Change the icon to more closely match the Reserve menu item.

Link page to Navigation Bar

Let’s connect the navigation to the page.

• In the left panel, select Pages
• Select page1 and rename it to reserve.
• Select the navigationCustomer header.
• Let’s connect the navbar to the page. Under Menu items > Reserve > Edit menu item > Page > reserve.

Create Container

Next, we want to organize the UI and employ a container.

• Select Add UI
• In the search box, select Container.

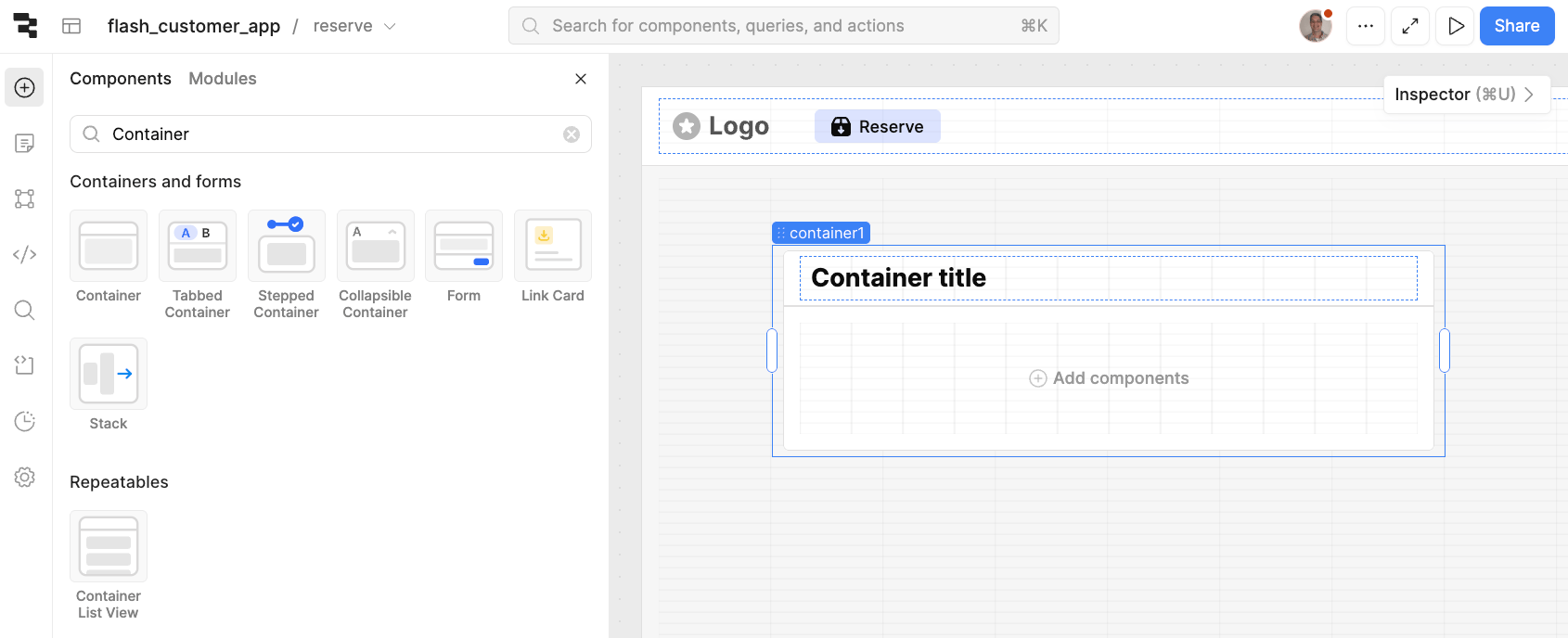

• Drag the Container component onto the canvas.

Create Container

• Update the container1 component label to customerContainer.
• Update the label from Container title to Reservation form.

Create Form

Now, we will create a form to collect input data for the customer reservation.

• Select Add UI > Form and place it in the customerContainer.
• Rename the Form, customerForm.
• We will generate the form using Generate from database.
• Select for Source, retool_db, Table, flash_customer(11). This will update the Form Generator display to show the following:

Form Generator

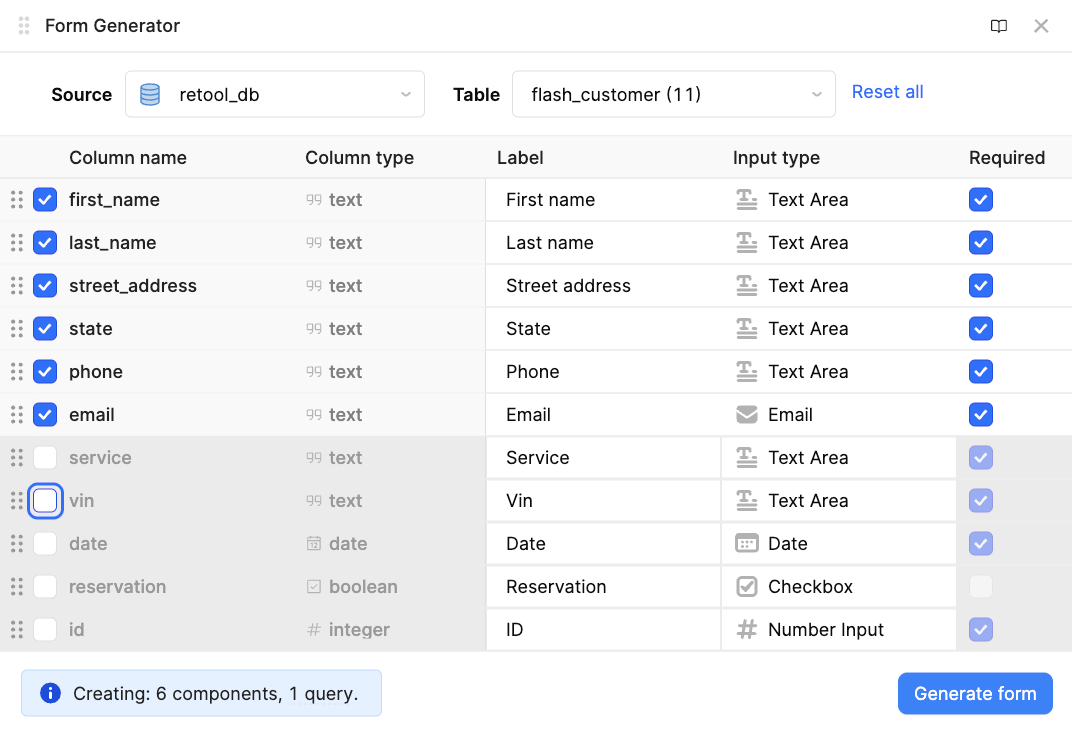

• Now we update the form entries into the proper order and disable others that are not part of the reservation process or have default values like (reserve and date).
• Select Generate form. This will update the canvas with the following:

Form Generator

• Update the customerForm label to Customer information

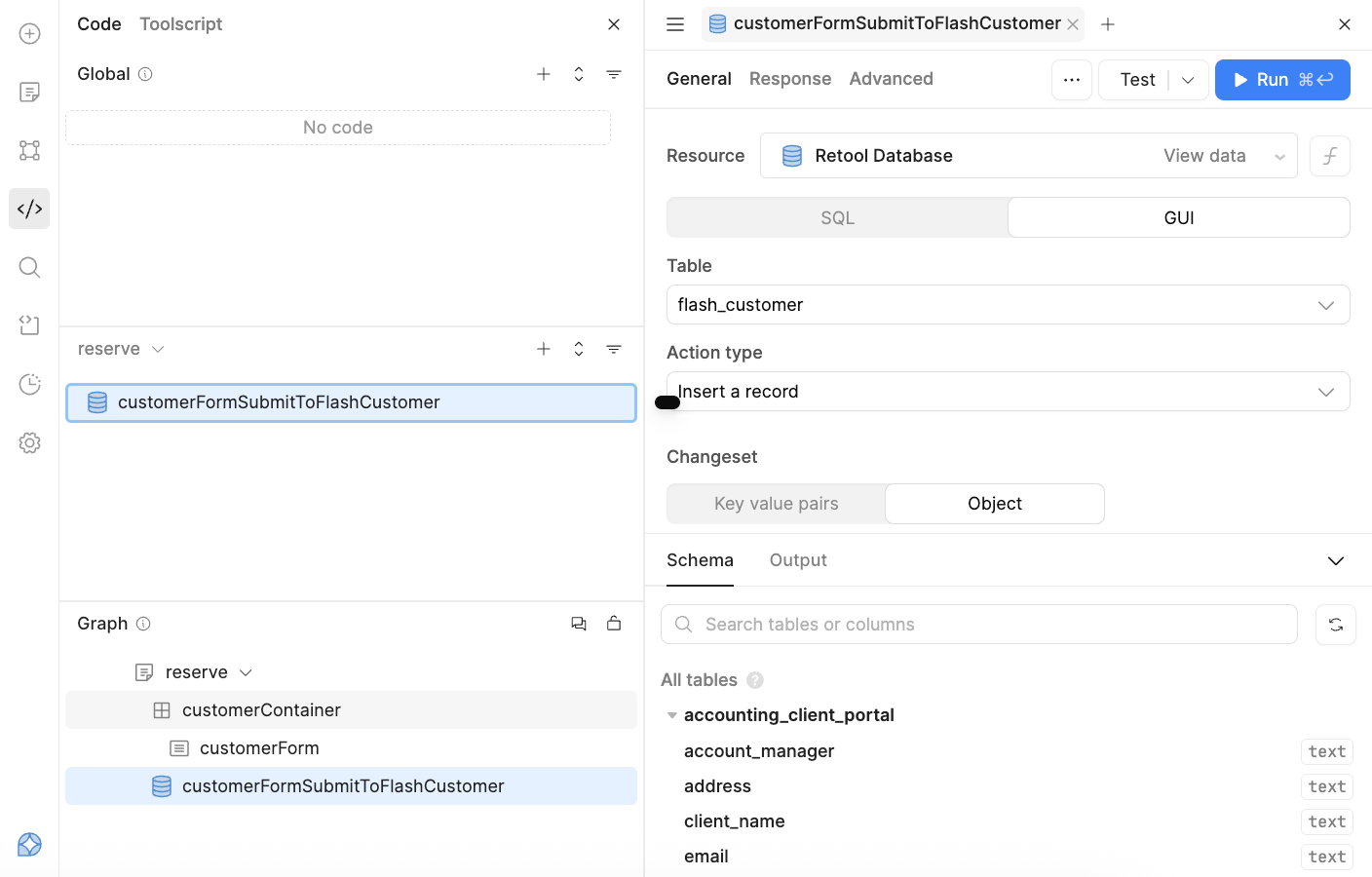

• This form will also auto-generate a query. Select Code > reserve > customerFormSubmitToFlashCustomer. The following image shows the query:

Form Query

NOTE: This query inserts a single record uploading the form object and Retool will then insert it into Retool database.

• Fill out the form and test the submit.
• Check Retool Database flash_customer table to see if an entry exists.

Flash Customer Entry
