Connect to Presto

Connect Presto to Retool to query distributed data sources with SQL.

Presto is a distributed SQL query engine for running federated queries across multiple data sources, including data lakes, relational databases, and object storage. You can create a Presto resource to connect to your Presto cluster and build apps and automations that use SQL queries to read and write data.

What you can do with Presto in Retool​

  • Query data with SQL using joins, aggregations, subqueries, common table expressions (CTEs), window functions, and Presto-specific functions using SQL mode.
  • Query across multiple catalogs and data sources federated by your Presto cluster in a single statement.
  • Insert, update, and delete records using GUI mode for write operations, depending on what your underlying catalog supports.
  • Run scheduled Presto queries in Retool Workflows.
  • Build dashboards and apps that display Presto query results in charts, tables, and other components.
  • Give Retool Agents typed, structured access to Presto queries as custom tools.

Before you begin​

To connect Presto to Retool, you need the following:

  • Presto cluster: An accessible Presto cluster with a configured catalog and schema.
  • Network access: Your Presto cluster must permit connections from Retool's IP addresses.
  • Credentials: A connection string with any credentials your cluster requires.
  • Retool permissions: Ability to create and manage resources in your organization.

Create a Presto resource​

Follow these steps to create a Presto resource in your Retool organization.

1. Create a new resource​

In your Retool organization, navigate to Resources in the main navigation and click Create new → Resource. Search for Presto and click the Presto tile to begin configuration.

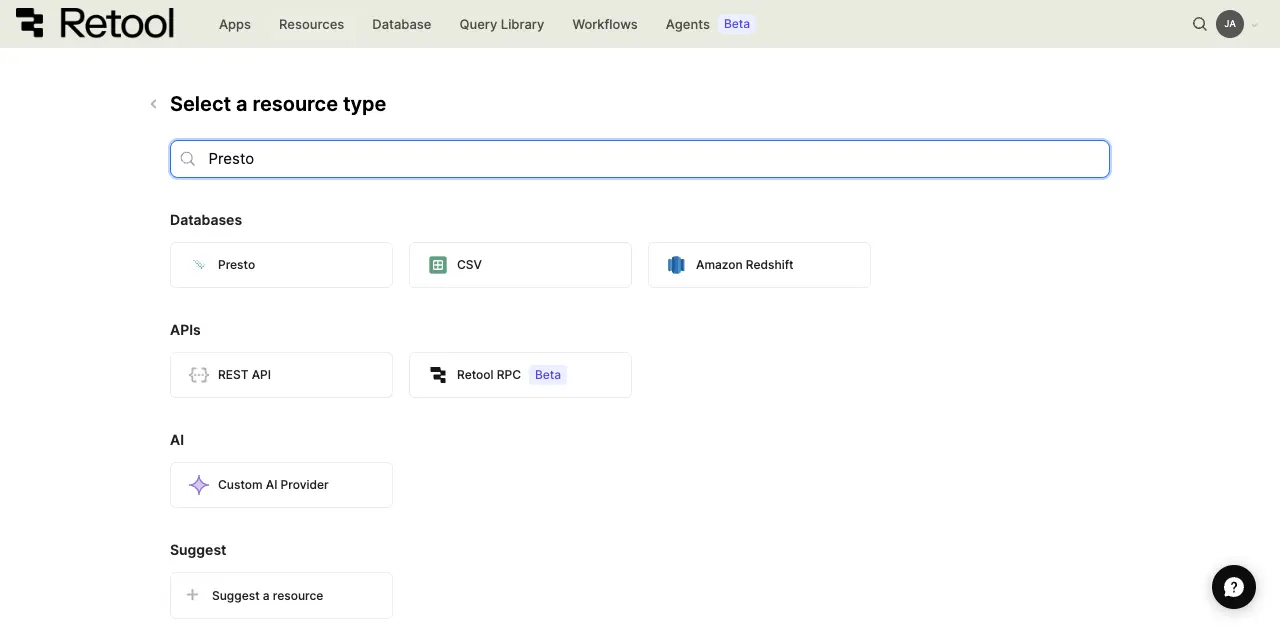

Presto resource selection.

Use folders to organize your resources by team, environment, or data source type. This helps keep your resource list manageable as your organization grows.

2. Configure general settings​

Specify a name and description for the resource that indicates which cluster or catalog it connects to. The description provides more context to users and Assist about how to use the resource.

Example nameExample description
Analytics PrestoA read-only Presto cluster federating queries across the analytics data lake.
Sales PrestoThe Presto cluster used to query sales data across catalogs.

3. Configure resource credentials​

Configure the connection settings for your Presto resource.

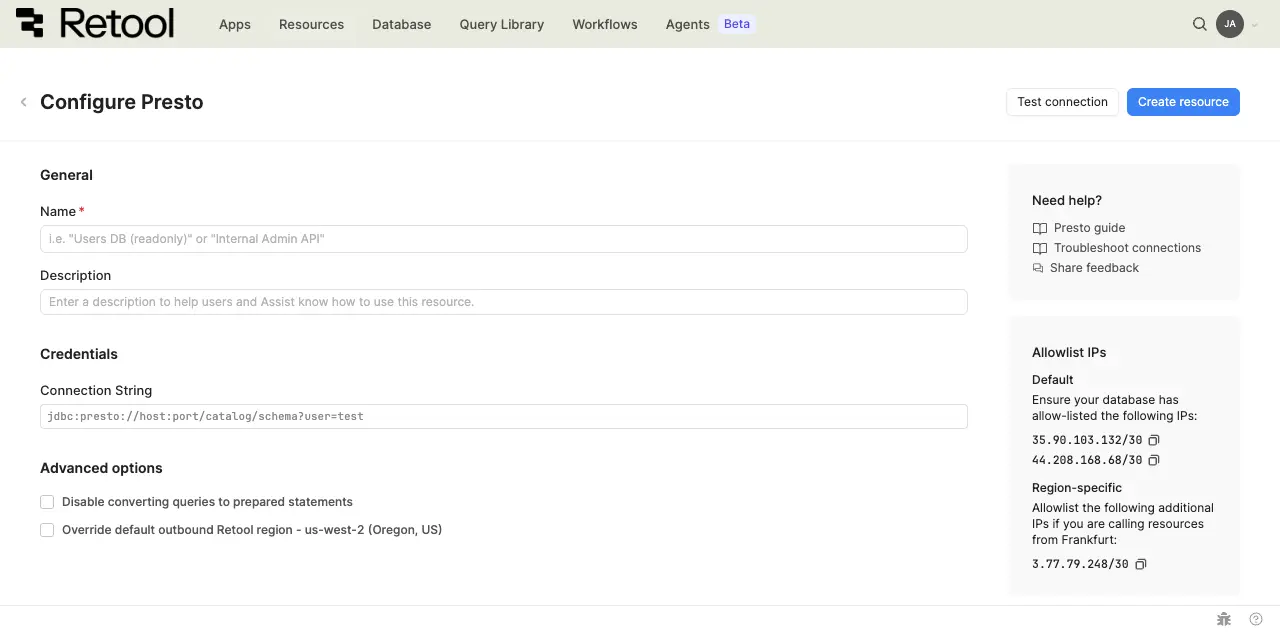

Presto connection settings.

Connection string​

Provide a JDBC connection string that includes your Presto coordinator's host, port, catalog, schema, and any credentials or parameters your cluster requires.

Example
jdbc:presto://host:port/catalog/schema?user=retool

List of cookies to forward​

If cookie forwarding is enabled for your organization, specify cookies to forward with each request to Presto. Use the pattern COOKIE_your_cookie_name to reference a user's cookie value in the connection URL's parameters.

4. Configure advanced options​

Configure optional settings available under the Advanced options section of the resource configuration form.

Disable converting queries to prepared statements​

By default, Retool uses prepared statements for Presto queries, which improves performance and prevents SQL injection. Disable this option only if your Presto setup does not support prepared statements.

Outbound region​

If your organization uses outbound regions, select the region that should be used for requests to Presto. This controls which geographic region your requests originate from, which is useful for reducing latency or meeting data residency requirements.

5. Test the connection​

Click Test connection to verify Retool can connect to your Presto cluster. If the test succeeds, you see a success message. If it fails, check the following:

  • Network access: Ensure your Presto coordinator accepts connections from Retool's IP addresses or your self-hosted instance's network.
  • Connection string: Verify the host, port, catalog, and schema in your connection string are correct.
  • Credentials: Verify any username, password, or token parameters in the connection string are correct and have access to the specified catalog.

After testing the connection, click View in console to open the Debug Tools console. The console displays detailed information about the test, including the test query executed, execution time, and error details if the test fails.

6. Save the resource​

Click Create resource to save your Presto resource. You can now use it in queries across your Retool apps, workflows, and agents.

Query Presto data​

Once you've created a Presto resource, you can query Presto data in your Retool apps, workflows, and agents.

Create a query​

In Retool apps, you write queries by prompting an AI agent. In classic apps, you can create a query manually using SQL, or use Assist to generate one with natural language.

Prompt the agent in the Chat tab to write a function that queries your Presto resource:

  1. In the app builder, open the Chat tab.
  2. Write a prompt describing the data you want, referencing your Presto resource by @-mentioning it (for example, @Sales Presto).
  3. Review the generated function and approve it to run.
Example prompts
retrieve 100 rows from the orders table using @Sales Presto

count orders by status from the orders catalog using @Sales Presto

You can inspect or edit the generated function afterward in the function playground.

Action types​

The following modes and fields are specific to the classic app query editor. In classic apps, Presto queries support two modes: SQL mode for reading data with custom SQL queries and GUI mode for write operations. In GUI mode, you can select from multiple action types for different write operations.

Write support depends on the catalog and connector your Presto cluster queries. Many catalogs, such as those backed by object storage, are read-only. Check your catalog's documentation to confirm which operations it supports.

Action typeDescriptionUse case
Insert a recordAdd a single new row to a table.Create records from form submissions.
Update an existing recordModify an existing row identified by primary key or filter.Edit individual records with inline editing.
Update a record, or create a new record if it doesn't existUpdate an existing record or create a new one if the record doesn't exist.Upsert operations based on filter criteria.
Delete a recordRemove rows based on filter criteria.Delete records with confirmation.
Bulk insert recordsAdd multiple new rows to a table in a single operation.Bulk create records from imported data.
Bulk update via a primary keyUpdate multiple records identified by primary key.Batch update operations.
Bulk upsert via a primary keyInsert or update multiple rows based on a primary key.Import data that may contain new or existing records.

Query configuration fields​

Configuration fields vary based on the mode and action type you select. Field values can be static (e.g., orders) or dynamic using an embedded expression (e.g., {{ dropdown1.value }}).

SQL mode​

For reading data with custom SQL queries.

SQL query

The SQL statement to execute. Available in SQL mode.

simple select
Basic SELECT query
SELECT id, name, email, status, created_at
FROM orders
WHERE status = 'active'
ORDER BY created_at DESC
LIMIT 100
joins across catalogs
JOIN across catalogs
SELECT
  o.id,
  o.status,
  c.name AS customer_name
FROM hive.sales.orders o
JOIN mysql.crm.customers c ON o.customer_id = c.id
WHERE o.status = 'active'
common table expression (CTE)
CTE for complex queries
WITH recent_orders AS (
  SELECT customer_id, SUM(total) AS total_spent
  FROM orders
  WHERE created_at > CURRENT_DATE - INTERVAL '30' DAY
  GROUP BY customer_id
)
SELECT c.name, ro.total_spent
FROM customers c
JOIN recent_orders ro ON c.id = ro.customer_id
WHERE ro.total_spent > 100
parameterized query
Query with embedded expressions
SELECT id, name, price, category
FROM products
WHERE category = {{ dropdown1.value }}
  AND price BETWEEN {{ minPrice.value }} AND {{ maxPrice.value }}
ORDER BY price ASC

GUI mode​

For write operations using the graphical interface, if supported by your catalog.

Action type

Select from the action types listed in the Action types table above.

Table name (all action types)

The database table to query.

Examples
// Static table name
users

// Dynamic table name
{{ dropdown1.value }}
Records

Applies to: Insert multiple records, Bulk upsert by key.

The data to insert or upsert.

Insert from array
{{ table1.data }}
Transform file upload
{{
  fileInput1.parsedValue.map((row) => ({
    name: row.Name,
    email: row.Email,
    status: "active",
  }))
}}
Filter by

Applies to: Update an existing record, Update/create if not exists, Delete a record.

The WHERE clause conditions for filtering rows.

Example
{{ { status: "active", role: roleSelect.value } }}
Primary key column

Applies to: Update a record, Delete a record, Bulk upsert by key.

The column used as the primary key for identifying records.

Example
// Primary key column name
id

// Composite key (for bulk upsert)
["user_id", "product_id"]
Changeset

Applies to: Update a record, Update multiple records.

The columns to update with new values.

Changeset from table inline editing
{{ table1.changesetObject }}
Changeset from form
{{ form1.data }}

Common use cases​

The following examples use the classic app query editor and demonstrate typical Presto operations in classic apps.

read and display data in a table

First, create a query named tableQuery and write an SQL statement to retrieve some data.

Example query
SELECT id, name, email, status, created_at
FROM orders
WHERE status = 'active'
ORDER BY created_at DESC
LIMIT 100

Next, add a Table component to the app and set its Data property to {{ tableQuery.data }}. The table dynamically updates to reflect the data returned by the query.

filter data with user input

First, add input components for users to specify search filters.

  • A Text Input component (searchInput) for search terms.
  • A Select component (statusSelect) for status filtering.

Next, write a query that references the input component values to filter data.

Example query
SELECT id, name, email, status, created_at
FROM orders
WHERE
  name LIKE {{ '%' + searchInput.value + '%' }}
  AND status = {{ statusSelect.value }}
ORDER BY created_at DESC

Queries that read data automatically run whenever any referenced input values change by default. As you update the input fields, the query retrieves new data based on the new values.

insert new rows from a form

Add a Form component (form1) with input fields for the data you want to collect (name, email, role).

Create a query in GUI mode to insert a new row using the form data:

FieldValue
Action typeInsert a record
Table nameusers
Records{{ { name: form1.data.name, email: form1.data.email, role: form1.data.role, status: 'active' } }}

Add an event handler to the form's Submit event that runs the insert query and displays a success notification.

update data with inline editing

Add a Table component and enable inline editing by setting Enable saving to true.

Create an update query in GUI mode that saves changes made in the table:

FieldValue
Action typeUpdate a record
Table nameusers
Primary key columnid
Changeset{{ table1.changesetObject }}

Add an event handler to the table's Save changes event that runs the update query and refreshes the data query.

delete rows with confirmation

Add a Table component that displays your data and a Button component in an action column for deleting rows.

Create a delete query in GUI mode:

FieldValue
Action typeDelete a record
Table nameusers
Primary key columnid

Add an event handler to the button's Click event:

  1. Set the action to Show confirmation modal.
  2. If confirmed, trigger the delete query.
  3. Then refresh the data query.
