Connect to Google Docs

Connect Google Docs to Retool to read, generate, and update documents using the Docs API.

Google Docs Integration Availability
CloudGenerally Available
Self-hosted Edge 3.185 or laterGenerally Available
Self-hosted Stable 3.253 or laterPublic beta

Google Docs is a cloud-based word processor for creating and collaborating on text documents. Retool connects to Google Docs through the Docs API v1 using either OAuth 2.0 or a Google service account.

After you create a Google Docs resource in Retool, you can:

  • Generate documents from templates and populate them with data from your apps and workflows.
  • Read document content and structure for parsing or summarization.
  • Insert, replace, and delete text, paragraphs, tables, and other document elements.
  • Apply text and paragraph formatting programmatically.
  • Manage document metadata, permissions, and sharing via the Drive API.

Before you begin​

To connect Google Docs to Retool, you need the following:

  • Google account: A Google account or Google Workspace user with access to the documents you want to query.
  • Retool permissions: Edit all permissions for resources in your organization.

Create a Google Docs resource​

Follow these steps to create a Google Docs resource in your Retool organization.

1. Create a new resource​

In your Retool organization, navigate to Resources in the main navigation and click Create new → Resource. Search for Google Docs and click the Google Docs tile to begin configuration.

Use folders to organize your resources by team, environment, or data source type. This helps keep your resource list manageable as your organization grows.

2. Configure general settings​

Specify a name and description for the resource that indicates which Google account or workspace it connects to. The description provides more context to users and Assist about how to use the resource.

Example nameExample description
Google DocsDefault Google Docs resource for the operations team. Generates contracts and reports from templates.
Google Docs (read only)Read-only Google Docs resource for parsing meeting notes into internal apps.

When using Retool's hosted OAuth app (Cloud) or a custom OAuth app (self-hosted), you typically only need one resource. Each user authenticates individually and can only access their own documents. Creating multiple resources is usually unnecessary unless you need to support multiple OAuth applications or mix OAuth with service account authentication.

3. Configure authentication​

Configure the connection settings for your Google Docs resource under the Credentials section of the resource configuration form.

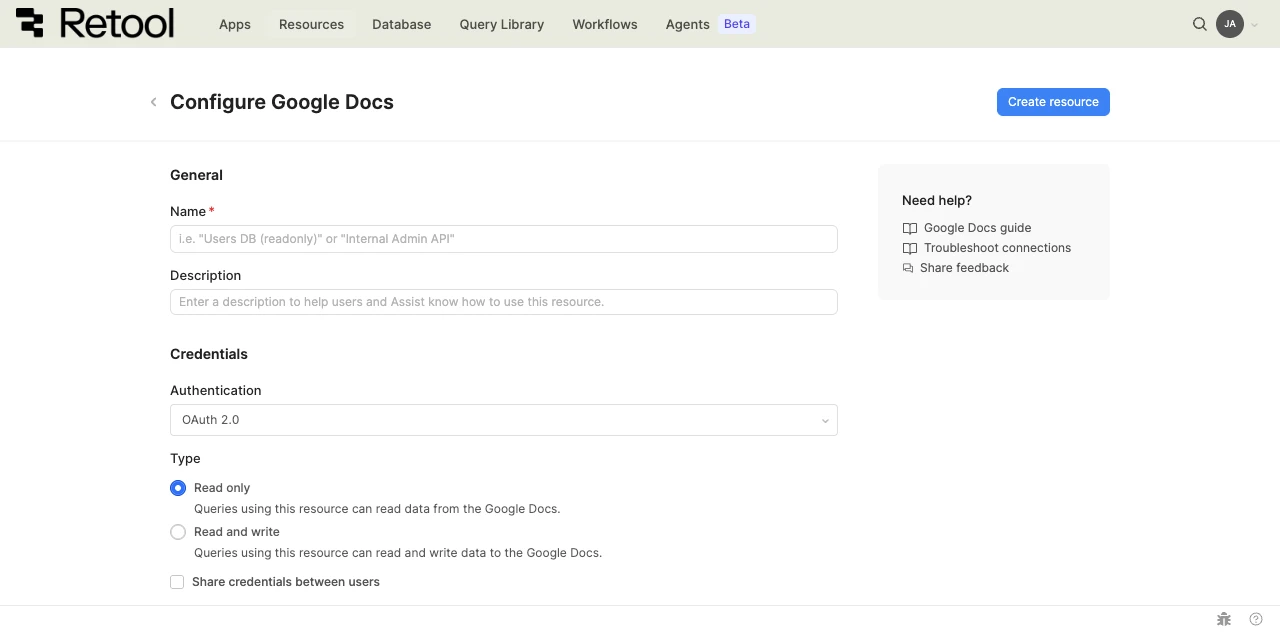

Google Docs resource configuration form.

Authentication​

Google Docs supports two authentication methods. Choose based on whether queries should run as the signed-in user or as a non-interactive service identity.

Authentication methodUse cases
OAuth 2.0Interactive apps where each user authenticates with their own Google account. Each user only sees the documents they have access to.
Google Service AccountAutomated workflows, scheduled queries, and shared internal apps that need to act as a non-interactive service identity. Documents must be explicitly shared with the service account's email address.
option A: OAuth 2.0 with Retool's hosted app (recommended)

Retool provides a hosted OAuth 2.0 client for Cloud organizations, so no external configuration is required.

  1. Select OAuth 2.0 as the Authentication method.
  2. Choose the Type:
    • Read only—queries can read document content and metadata only.
    • Read and write—queries can create, edit, and delete documents.
  3. Optionally enable Share credentials between users to allow all users of the resource to share a single set of credentials. By default, each user authenticates individually.
  4. Click Connect with OAuth and authorize Retool to access your Google Docs.
  5. Click Create resource to save.
option B: Google service account

Use a service account when queries should run as a non-interactive service identity rather than as the signed-in user.

  1. Create a service account in the Google Cloud Console and generate a JSON key.
  2. In Google Drive, share the documents the service account needs to access with the service account's email address.
  3. In Retool, select Google Service Account as the Authentication method.
  4. Choose the Type: Read only or Read and write.
  5. Paste the JSON contents of your service account key into the Service account key field.
  6. Click Create resource to save.

Refer to Google's service account documentation for setup details and key rotation guidance.

Type​

The Type setting controls the OAuth scopes used for Docs API calls. Google Docs requests scopes for both the Docs API and the Drive API, since most Docs operations require locating documents through Drive.

TypeAPI access
Read onlyRead document content and metadata. Includes documents.readonly and drive.readonly scopes. Use for apps that parse, summarize, or display Docs content.
Read and writeFull read and write access, including create and delete. Includes documents, drive.file, and drive scopes. Use for apps that generate documents, edit content, or manage files.

To change the Type after a resource has been created, update the authentication settings and re-authorize the resource. Users are prompted to re-consent on the next query.

Outbound region​

By default, requests originate from your organization's outbound region (for example, us-west-2). Enable Override default outbound Retool region to route requests through a different region. This is useful when Docs API access is restricted by IP or when you need to align with data residency requirements.

4. Save the resource​

Click Create resource to save your Google Docs resource.

Google Docs resources cannot be tested from the resource configuration screen. Save the resource and verify the connection by running a query—for example, list available documents at https://www.googleapis.com/drive/v3/files?q=mimeType='application/vnd.google-apps.document'&pageSize=1.

Query Google Docs data​

Once you've created a Google Docs resource, you can query it in apps, workflows, and agent tools. Google Docs queries call the Docs API v1 and the Drive API v3. Use the API selector to switch between the two, then choose an endpoint from the Operation dropdown.

Create a query​

You can create a Google Docs query using Assist to generate queries with natural language, or manually by selecting an operation.

Use Assist to generate queries from natural language prompts.

To create a query with Assist:

  1. In the Retool app IDE, click the Assist button at the bottom of the left toolbar to open the Assist panel.
  2. Write a prompt describing the data you want to retrieve or the operation you want to perform, referencing your resource using @.
  3. Press Enter to submit the prompt.
  4. Select your Google Docs resource when prompted.
  5. Review the generated query and click Run query to add it to your app.
get the contents of document {{ documentIdInput.value }} using @Google Docs
list documents I've modified this week using @Google Docs
create a new document titled {{ titleInput.value }} using @Google Docs

Query configuration fields​

The fields below describe the Retool-side configuration—for the full list of available endpoints and parameters, refer to the Docs API reference and the Drive API reference.

API​

Choose which Google API to query against:

  • Docs API—Operations that act on document content (/documents, /documents/{documentId}, /documents/{documentId}:batchUpdate).
  • Drive API—Operations that act on documents as files in Drive: list, search, copy, share, move, trash. Use this when you need to locate documents, manage permissions, or operate on documents alongside other files.

Operation​

Select an endpoint from the dropdown. Each entry is labeled by endpoint path and HTTP method.

Examples (Docs API)
# Read a document's content
/documents/{documentId} GET

# Create a new (empty) document
/documents POST

# Apply a batch of edits to a document
/documents/{documentId}:batchUpdate POST
Examples (Drive API)
# List documents the user can access
/files GET

# Copy a document
/files/{fileId}/copy POST

# Share a document with a user
/files/{fileId}/permissions POST

Operation-specific parameters (path placeholders like {documentId}, URL parameters like fields, and a request body) appear once an operation is selected.

URL parameters​

Common URL parameters for Docs API operations:

ParameterDescriptionExample
suggestionsViewModeHow to surface tracked-changes content in the response: SUGGESTIONS_INLINE, PREVIEW_SUGGESTIONS_ACCEPTED, or PREVIEW_WITHOUT_SUGGESTIONS.PREVIEW_SUGGESTIONS_ACCEPTED
fieldsA comma-separated list of fields to include in the response. Reduces payload size for large documents.documentId,title,body(content)

Request body​

For write operations (POST), provide a JSON body matching the Docs API resource schema. Use embedded expressions to interpolate values from app state.

Example: replace placeholder text
{
  "requests": [
    {
      "replaceAllText": {
        "containsText": {
          "text": "{{ '{{customer_name}}' }}",
          "matchCase": true
        },
        "replaceText": {{ form1.data.customerName }}
      }
    }
  ]
}

Advanced​

Use the Advanced section to add request headers or URL parameters not covered by the operation's defaults. The Authorization header is set automatically from the resource's authentication.

Google Docs query examples​

These examples demonstrate the most common Google Docs operations in Retool apps. For a complete reference of available operations and parameters, refer to the Docs API documentation.

read document content

Create a query named getDocumentQuery to retrieve the structured contents of a document.

Configure the query:

FieldValue
APIDocs API
Operation/documents/{documentId} GET
documentId (path){{ documentIdInput.value }}
URL parametersfields=documentId,title,body(content)

The response includes the document body as a tree of structural elements (paragraphs, tables, sections). For most read use cases, walk the body.content array and concatenate text runs to reconstruct plain text.

Add a Text component bound to a transformer that walks the response:

JavaScript transformer
const elements = getDocumentQuery.data?.body?.content || [];
return elements
  .flatMap(el => el.paragraph?.elements || [])
  .map(run => run.textRun?.content || '')
  .join('');
create a new document from a template

Maintain a Drive folder containing template documents and copy a template at runtime. First, list templates in the folder, then copy the selected template into the user's working folder.

Create a copy query named copyTemplateQuery. Switch the API to Drive API, which is available on the same Google Docs resource:

FieldValue
APIDrive API
Operation/files/{fileId}/copy POST
fileId (path){{ templateIdSelect.value }}

Set the Request body to:

{
  "name": {{ docNameInput.value }},
  "parents": ["{{ targetFolderInput.value }}"]
}

The response includes the new document's ID, which you can pass to a subsequent batchUpdate query to populate the template.

replace placeholders with form data

Create a query named populateDocumentQuery to fill placeholder text in a copied template.

Configure the query:

FieldValue
APIDocs API
Operation/documents/{documentId}:batchUpdate POST
documentId (path){{ copyTemplateQuery.data.id }}

Set the Request body to:

{
  "requests": [
    {
      "replaceAllText": {
        "containsText": { "text": "{{ '{{customer_name}}' }}", "matchCase": true },
        "replaceText": {{ form1.data.customerName }}
      }
    },
    {
      "replaceAllText": {
        "containsText": { "text": "{{ '{{contract_date}}' }}", "matchCase": true },
        "replaceText": {{ moment().format('MMMM D, YYYY') }}
      }
    },
    {
      "replaceAllText": {
        "containsText": { "text": "{{ '{{total_amount}}' }}", "matchCase": true },
        "replaceText": {{ '$' + form1.data.amount.toFixed(2) }}
      }
    }
  ]
}

Add an event handler to the form's Submit event that runs copyTemplateQuery, then populateDocumentQuery, then opens the new document in a new tab using https://docs.google.com/document/d/{{ copyTemplateQuery.data.id }}/edit.

insert text at the end of a document

Create a query named appendTextQuery to append a paragraph to a document—useful for activity logs or audit trails.

Configure the query:

FieldValue
APIDocs API
Operation/documents/{documentId}:batchUpdate POST
documentId (path){{ documentIdInput.value }}

Set the Request body to:

{
  "requests": [
    {
      "insertText": {
        "endOfSegmentLocation": {},
        "text": {{ '\n' + moment().format('YYYY-MM-DD HH:mm') + ' — ' + entryInput.value }}
      }
    }
  ]
}

Add an event handler to a form's Submit event that runs the query and clears the input on success.

list available documents

Create a query named listDocumentsQuery to display documents the authenticated user can access. Switch the API to Drive API and filter by document MIME type.

Configure the query:

FieldValue
APIDrive API
Operation/files GET
URL parametersq=mimeType='application/vnd.google-apps.document' and trashed=false
fields=files(id,name,modifiedTime,webViewLink)
pageSize=100

Add a Table component bound to {{ listDocumentsQuery.data.files }}. Configure the Name column with an event handler that sets documentIdInput.value to currentRow.id on selection.

Best practices​

Follow these best practices to optimize performance, maintain security, and ensure data integrity when working with REST APIs.

Performance​

  • Cache responses: For data that doesn't change frequently, enable query caching to reduce API calls and improve response times.
  • Use pagination: Implement pagination for endpoints that return large datasets to reduce payload size and improve performance.
  • Batch requests: When available, use batch API endpoints to combine multiple operations into a single request.
  • Minimize payload size: Request only the fields you need using query parameters or API-specific field selection features.
  • Set appropriate timeouts: Configure query timeouts based on expected API response times to prevent hung requests.

Security​

  • Use configuration variables: Store API keys and tokens in configuration variables or secrets rather than hardcoding them.
  • Use HTTPS only: Always connect to APIs over HTTPS to encrypt data in transit and protect authentication credentials.
  • Rotate credentials regularly: Follow your API provider's recommendations for credential rotation and key management.
  • Validate SSL certificates: Keep SSL certificate verification enabled unless absolutely necessary for development environments.
  • Use resource environments: Configure multiple resource environments to maintain separate API configurations for production, staging, and development.
  • Apply least privilege: Use API keys with minimal required permissions. Create separate keys for different environments.

Data integrity​

  • Validate user input: Sanitize and validate all user input before including it in API requests to prevent injection attacks.
  • Handle errors gracefully: Configure error notifications and fallback behavior for failed API calls to improve user experience.
  • Use idempotency keys: For APIs that support idempotency keys, include them in POST/PATCH requests to prevent duplicate operations.
  • Verify responses: Check response status codes and validate response data structure before using it in your app.
  • Implement retry logic: For transient failures, use Retool's automatic retry settings or implement custom retry logic with exponential backoff.

Google Docs-specific considerations​

  • Choose the narrowest scope: Use the Read only type unless your app needs to create or edit documents. Switching from a broader scope to a narrower one later forces every user to re-consent.
  • Use batchUpdate for multiple edits: Group multiple edits into a single batchUpdate request rather than issuing one request per change. This is faster, atomic, and reduces API quota consumption.
  • Index ranges are character-based: Docs API ranges are zero-based character indices into the document's content stream, not line or paragraph counts. Reading the document first to compute indices is often necessary before editing.
  • Templates over generation: For complex documents, maintain Drive-hosted templates with placeholder tokens ({{ '{{token}}' }}) and use replaceAllText to populate them. This is faster and more reliable than building structure with insert requests.
  • Document IDs persist across copies: Copied documents receive new IDs. Persist the copied document's ID in your database or app state to support follow-up edits.
