Retool App IDE

Build a React revenue tracking app using Retool's App IDE

Retool App IDE helps builders create production-ready React applications. Retool leverages the Retool Platform — including Resources, Source Control, and SSO — to take a natural language prompt and turn it into a fully functional, deployable React application. The following lab walks through the Retool interface and builds a revenue tracking app from a CSV export.

Retool AppGen walkthrough

In this lab, you will step into the role of a RevOps builder tasked by your COO to build a revenue tracking prototype for a recently acquired company. The IT team at the acquired company is familiar with React and has provided a CSV export from their ERP system as a starting point. You will use Retool to generate the app, explore its interface, and demonstrate write-back capability.

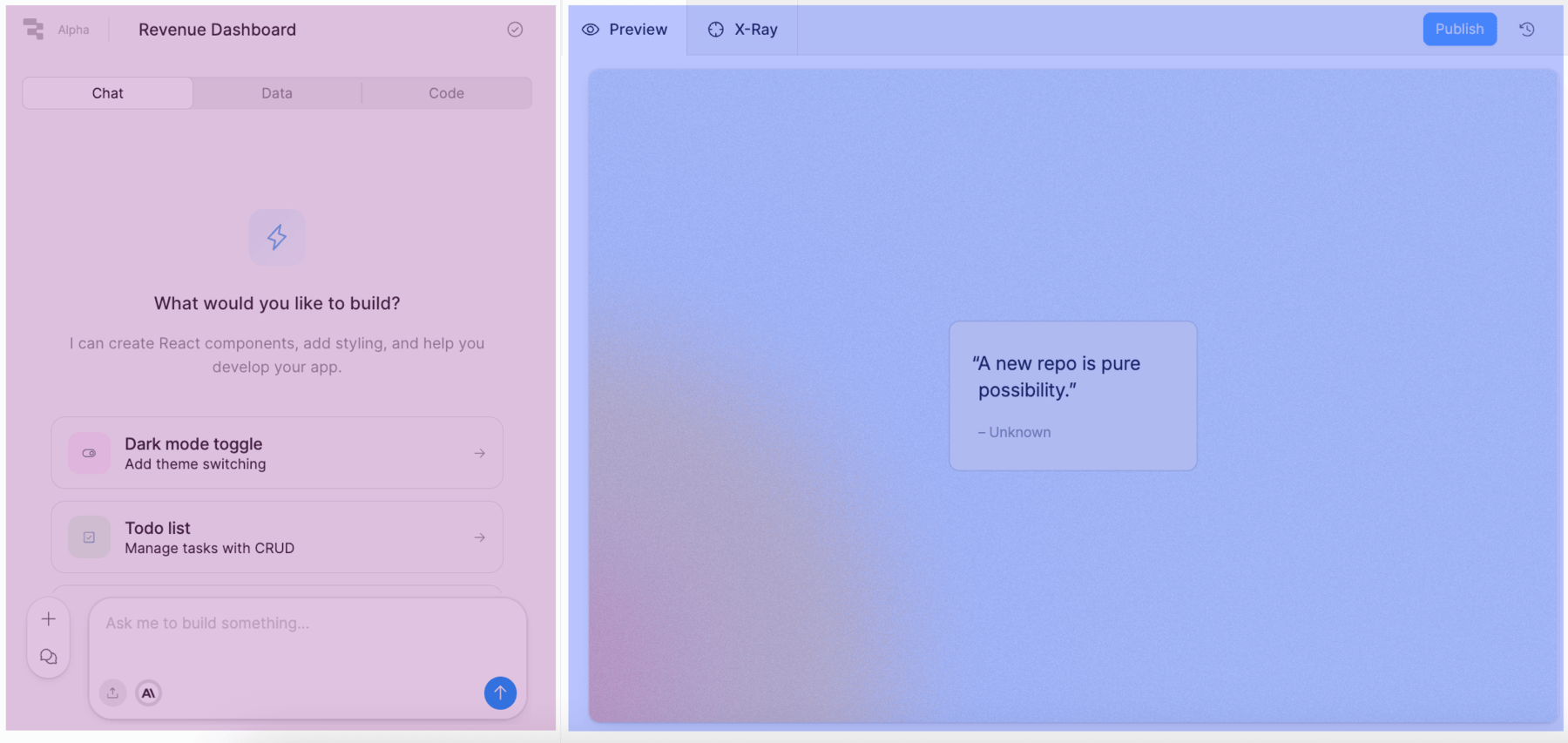

The following image shows the Retool interface with the Chat panel (magenta) and Preview panel (blue) side by side.

Simple example

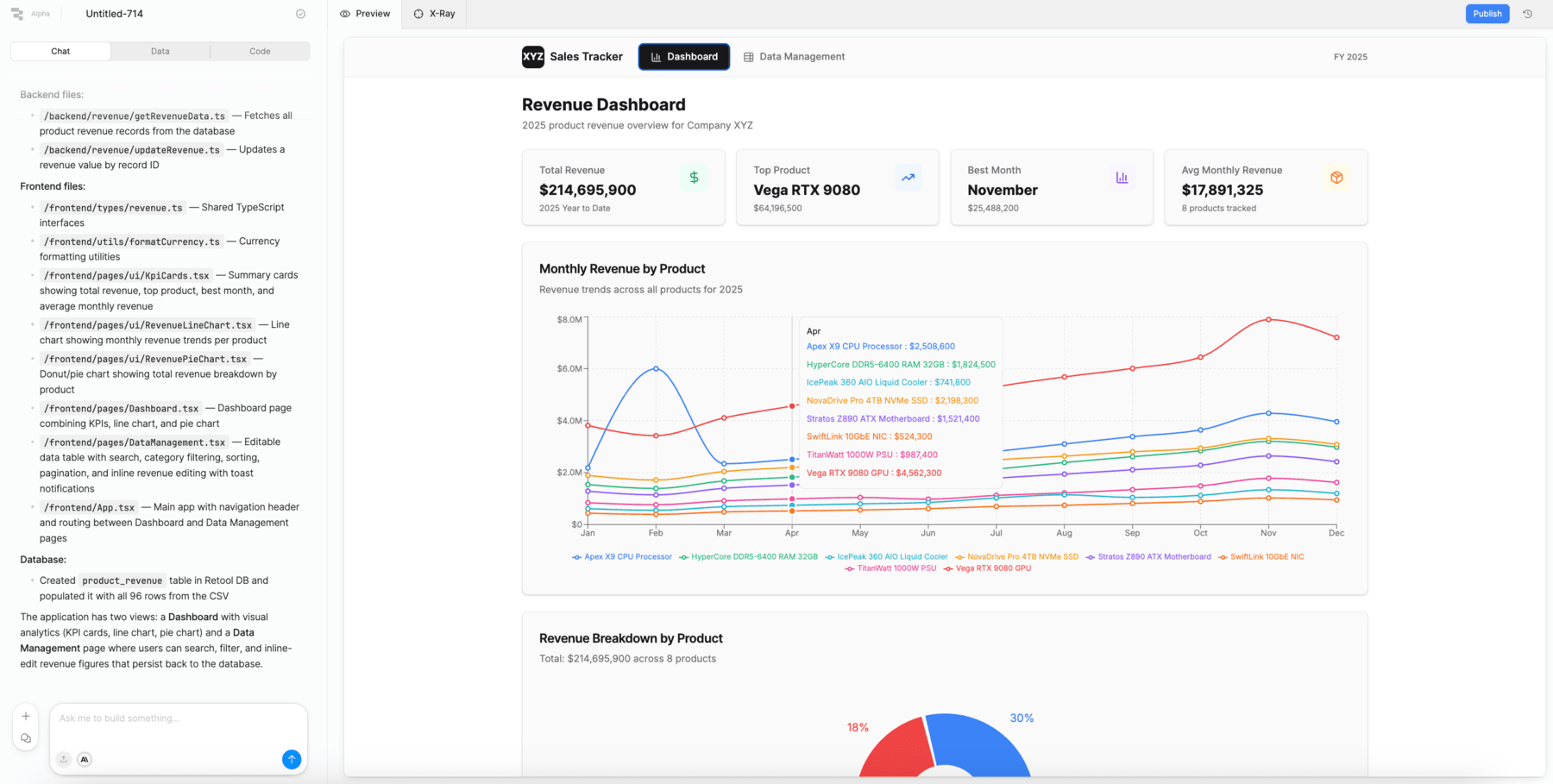

The following video shows the completed revenue tracking app that you will build in this lab.

Data overview

Before creating the app, examine the sample data that Retool will reference via Retool Database.

CSV schema

The CSV export from the acquired company's ERP system contains monthly 2025 revenue data. The schema is as follows.

Column name	Description	Value Type
product_id	Unique product identifier	Text (e.g., PRD-001)
product_name	Display name of the product	Text
category	Product hardware category	Text
month	Month number (1–12)	Number
month_name	Full month name	Text
revenue_usd	Monthly revenue in US dollars	Number

The dataset includes 8 products across 8 hardware categories (Processors, Graphics Cards, Memory, Storage, Motherboards, Networking, Cooling Systems, Power Supplies) with one revenue record per product per month, 96 rows total.

Download the ERP revenue CSV to be used in the following section.

Create a Retool app

• Select Home (Retool icon) to return to the home page.
• Select Apps > Create > Retool.

This opens the Retool interface, which consists of two panels: the Chat panel on the left and the Preview panel on the right.

Prompt the app using the CSV

Focus Area: Chat panel / Prompt area

With the Retool interface open, we will now use the CSV file and a natural language prompt to generate the revenue tracking app.

• Select the file upload icon in the Chat panel and attach the erp_product_revenue_2025.csv file.
• Enter the following prompt in the Ask me to build something… input area:

Create an application that tracks sales/revenue within company XYZ. The accompanying
CSV file contains data to be stored in the Retool Database and includes monthly 2025
information. This application will use this information to provide a line chart and
a pie chart showing the revenue breakdown by product. Also, use a table component so
authorized users can update the information if sales or revenue figures are incorrect
or out of date.

• Select the blue Send button to start the AppGen process.

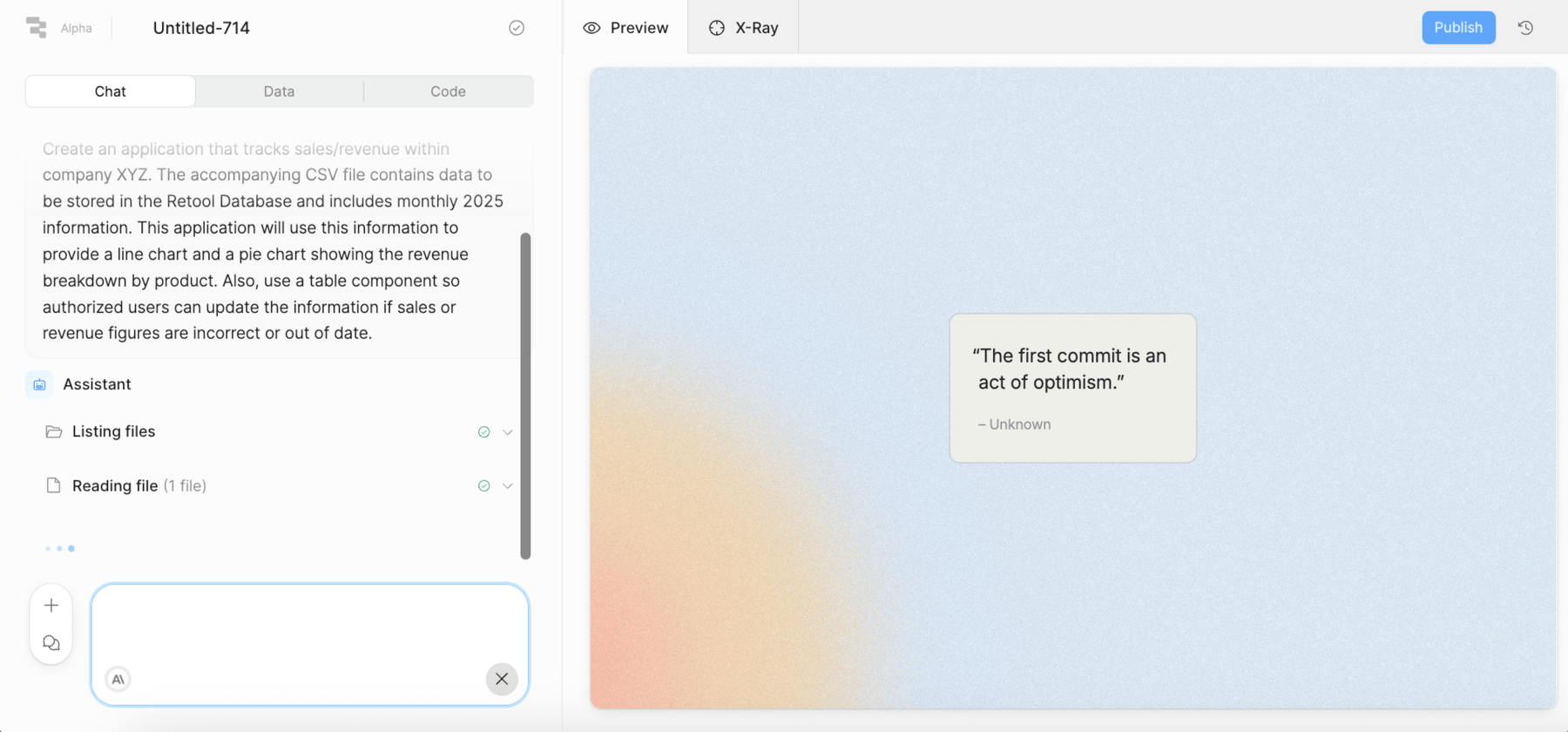

Retool will begin building the app. You will see tool feedback messages in the Chat panel as Retool works — actions like Creating tables, Listing files, Reading files, and Wrote will appear. You can expand each action to inspect the details, including any SQL calls made against the Retool Database.

Explore the Retool interface

Focus Area: Chat panel

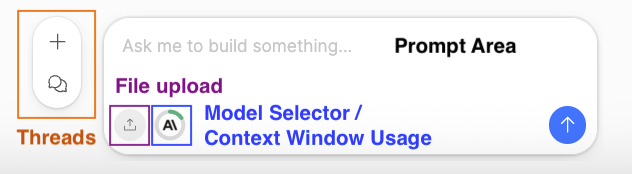

While Retool is generating the app, take a moment to explore the Chat panel features. The following image identifies different capabilities.

Prompt area

The Ask me to build something… input is where you enter prompts to create, edit, debug, or ask questions about your React application. You can use it at any point — before, during, or after app generation.

File upload

The file upload icon allows you to attach images or files (such as a CSV) to provide additional context to Retool when building or editing an app.

Model selector / context size

The model selector allows a builder to select which provider model to employ. A context size indicator also shows how much token capacity remains in the current thread. Model providers have limits ranging from 200K to 1M tokens; the indicator helps you monitor usage.

Threads and history

Each Retool session is captured in a thread. Threads maintain the full conversation history — prompts, edits, and model responses — that define how the app was built. The thread controls at the top of the Chat panel allow you to:

• + — Start a new thread (and a new app generation context)
• Model selector — Choose your model provider and model
• Thread history — Review and switch between prior threads

Review the generated app

Focus Area: Preview panel

Once Retool finishes generating the app, the Preview panel on the right displays the live, interactive application. This is where you can test and validate functionality before deploying.

The generated app can vary but will either provide a single page or a tabbed container allowing you to see charts and table data separately. The following provides a generic explanation for the app:

Revenue Trends

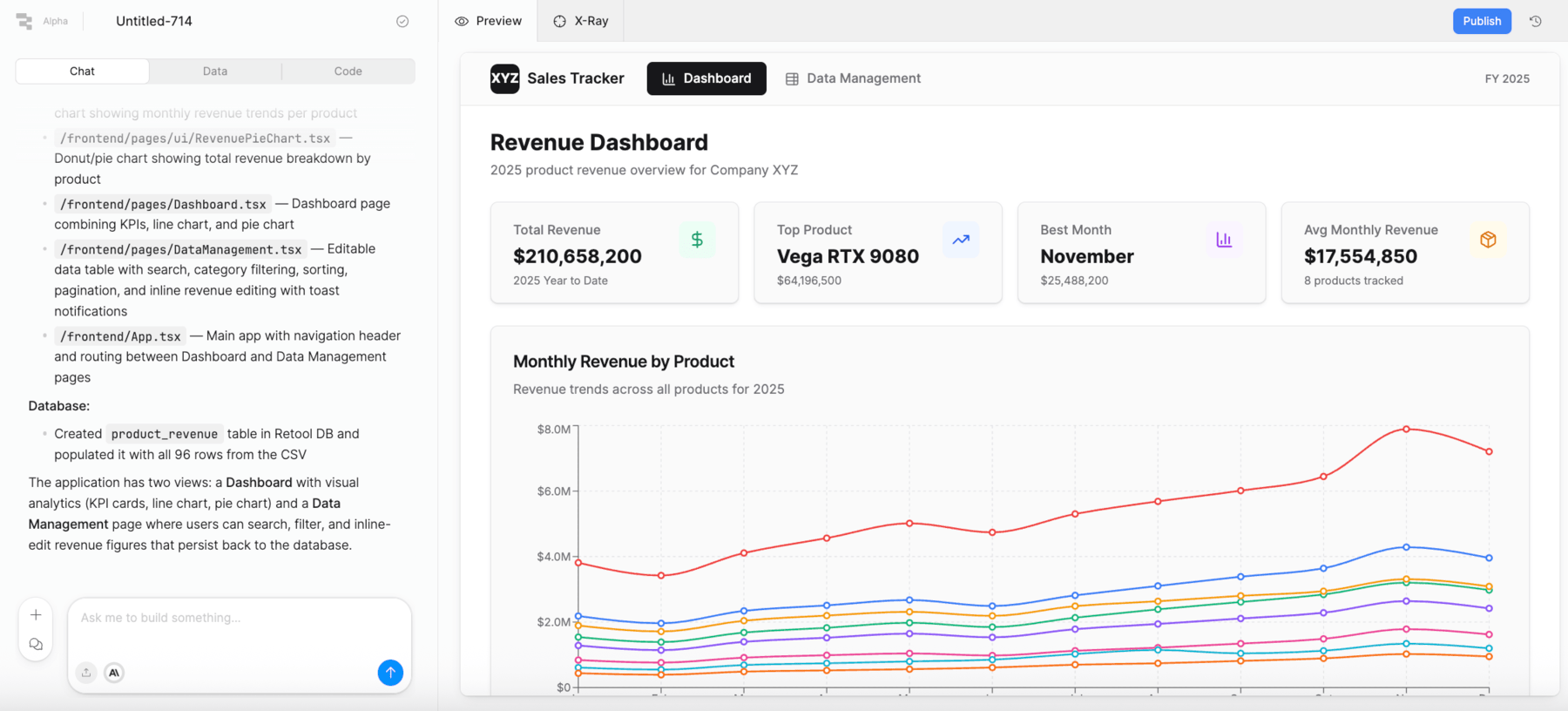

The Revenue Trends tab displays a line chart showing monthly revenue across all products for 2025. Each product is represented as a separate line, making it easy to compare performance across the year.

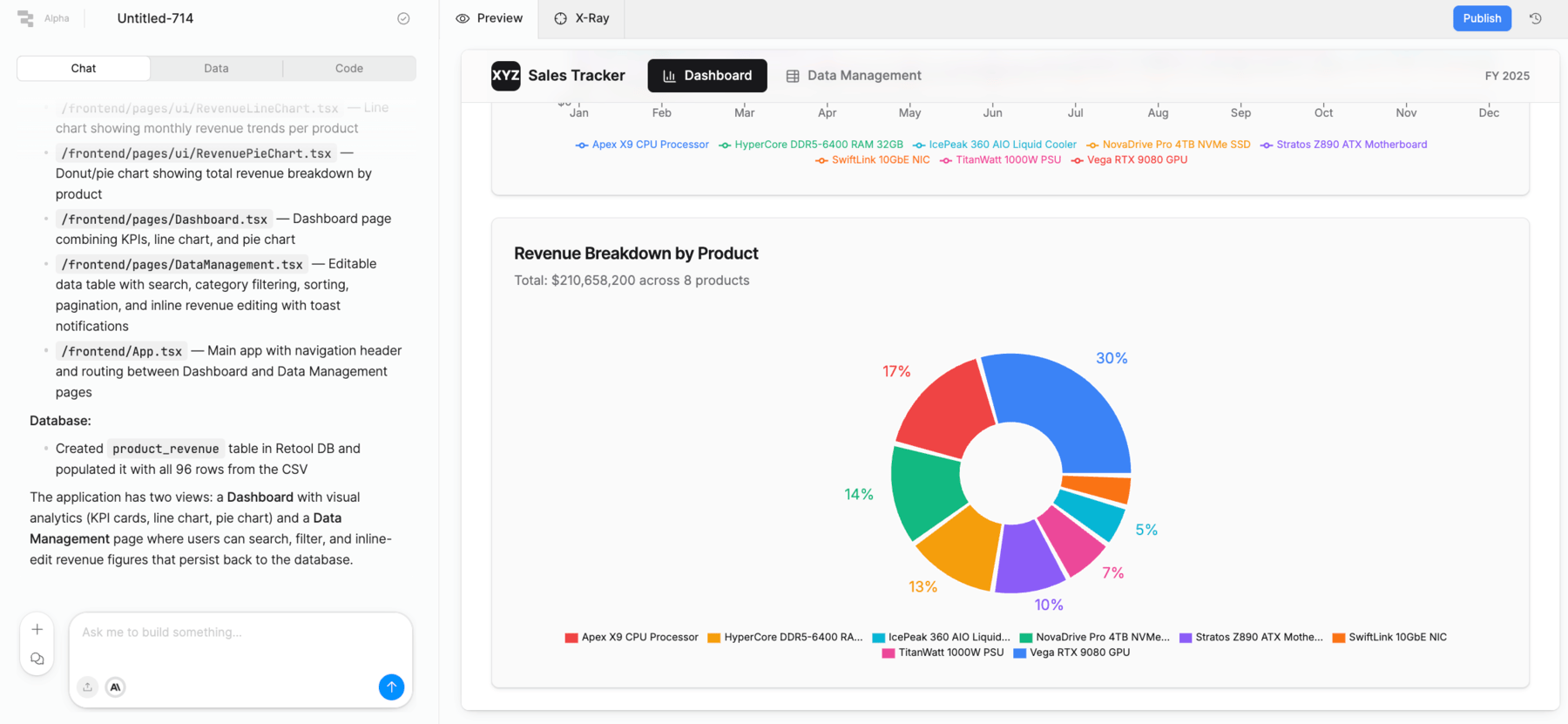

Revenue Breakdown

The Revenue Breakdown tab displays a pie chart showing each product's contribution to total 2025 revenue. This provides a quick visual summary of which products drive the most revenue.

Data Table

The Data Table tab displays the underlying revenue data in an editable table, allowing authorized users to correct records if figures are inaccurate or out of date.

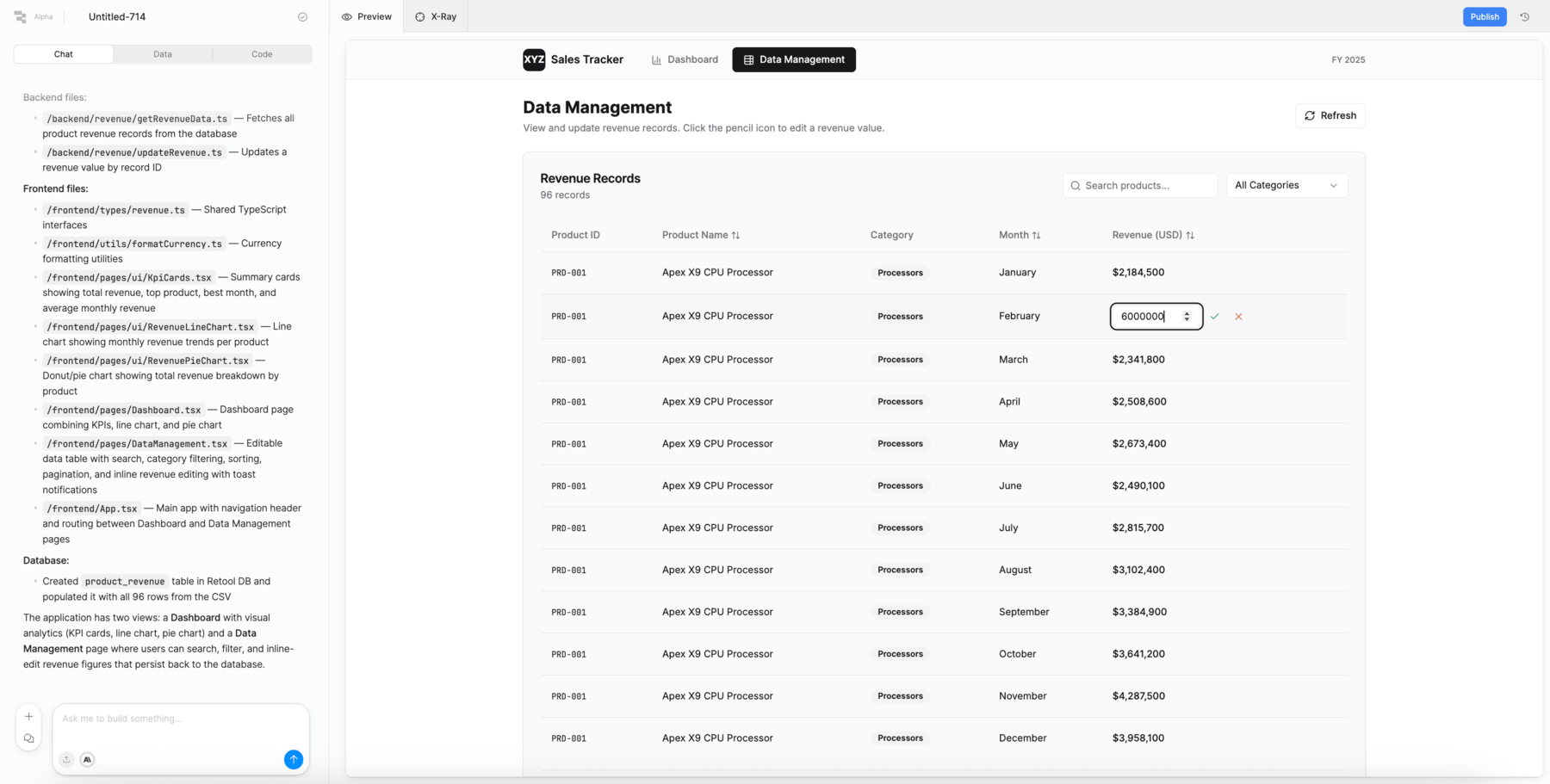

To demonstrate write-back capability:

• Locate the TitanWatt 1000W PSU row for February.
• Change the revenue_usd value from 1962300 to 6000000.
• Select Run Function on the far left to commit the update to the Retool Database.
• Switch back to the Data Management tab and observe the updated February value for TitanWatt reflected in the line chart.

• Switch back to Dashboard to view the value change.

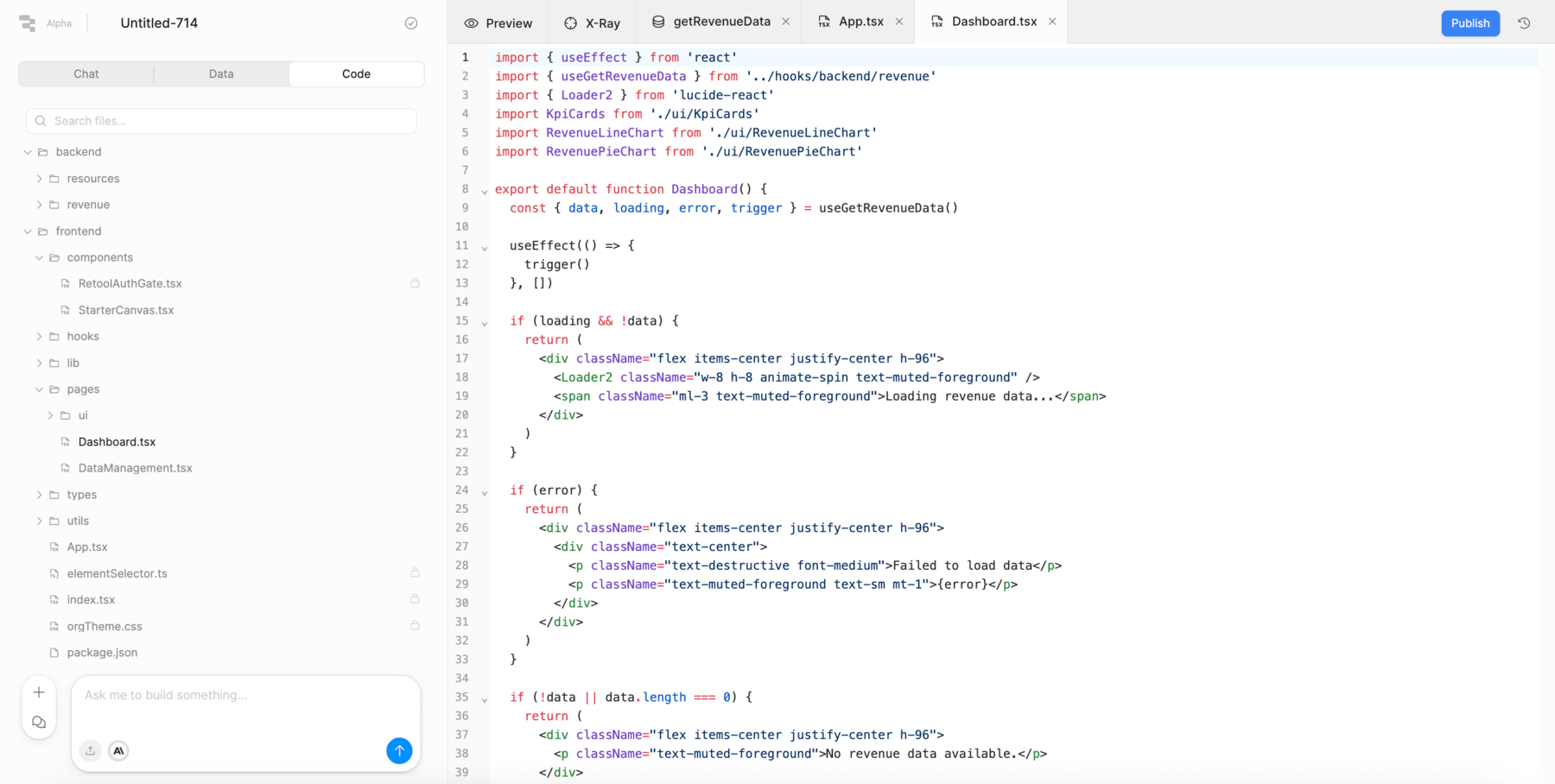

Review the generated source code

Focus Area: Chat panel / Code tab

• Select the Code button in the upper-left corner of the Chat panel.

The view switches from the live app preview to the underlying React codebase Retool generated. The code is organized into logical groups — components, data actions, styles, and more — giving developers full visibility and control over what was generated.

The generated code is fully editable. Developers can extend, refactor, or version-control it using Retool's Source Control integration.

Review the Data tab

Focus Area: Chat panel / Data tab

The Data tab in the Chat panel provides a structured view of the resources and functions that connect the React app to its data backend.

Data sources

Resources are the backend data services the app connects to. In this lab, the app is connected to the Retool Database (a hosted PostgreSQL instance). In a production deployment, the resource would point to the acquired company's ERP system.

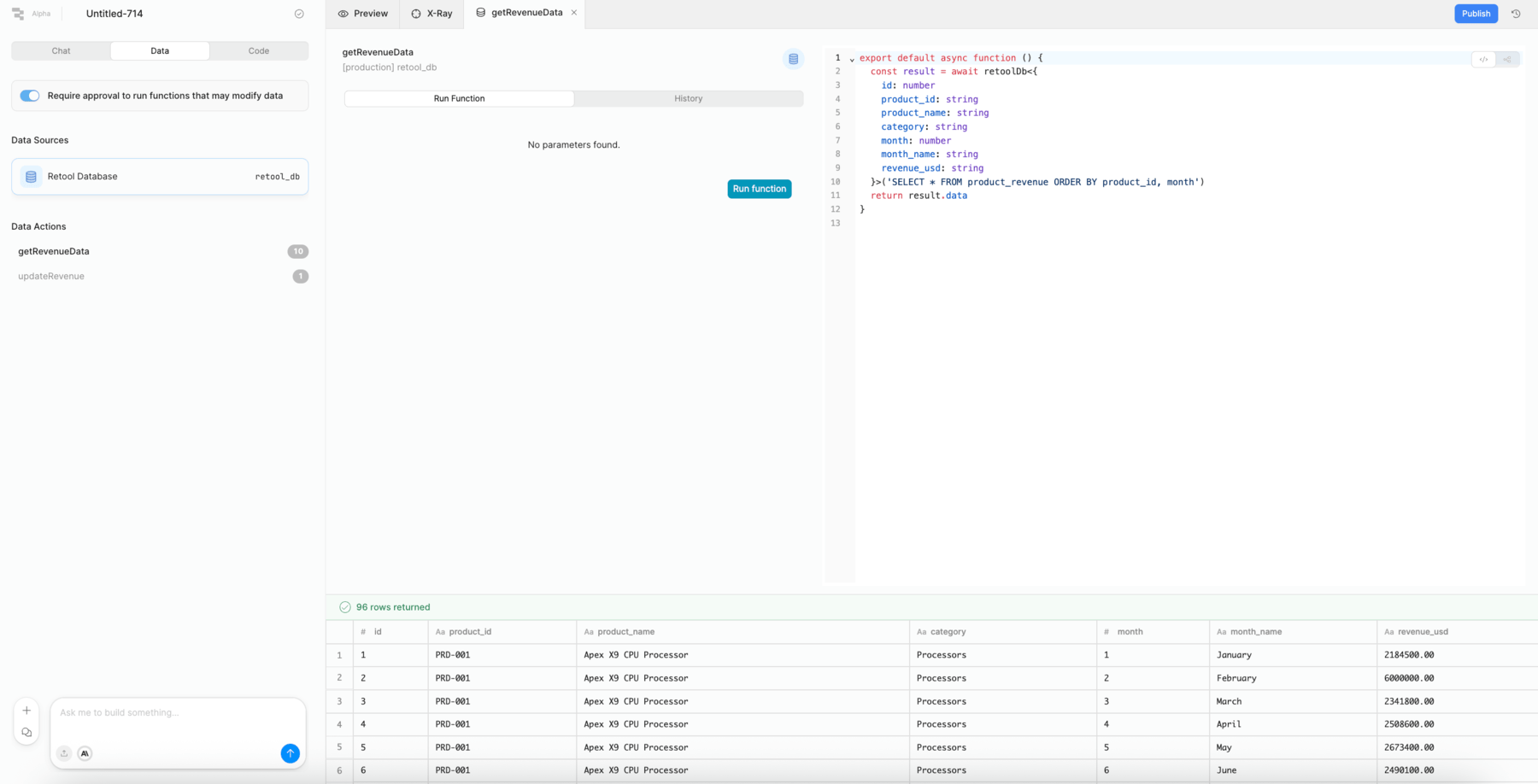

Data actions

Data actions are the serverless functions Retool generated to query and write to the data source. Selecting a data action reveals its details — for example, the getRevenueData action issues a SELECT statement against the erp_product_revenue_2025 table and returns the results to the app as a named data binding.

Run function

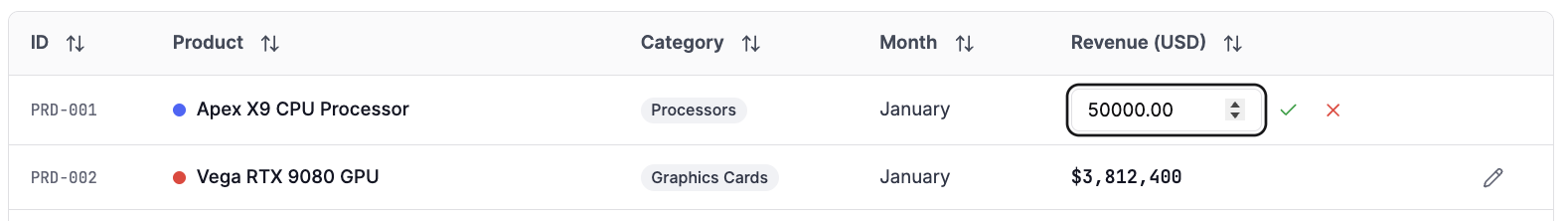

In the application, the values on the table can be modified as shown in the following image.

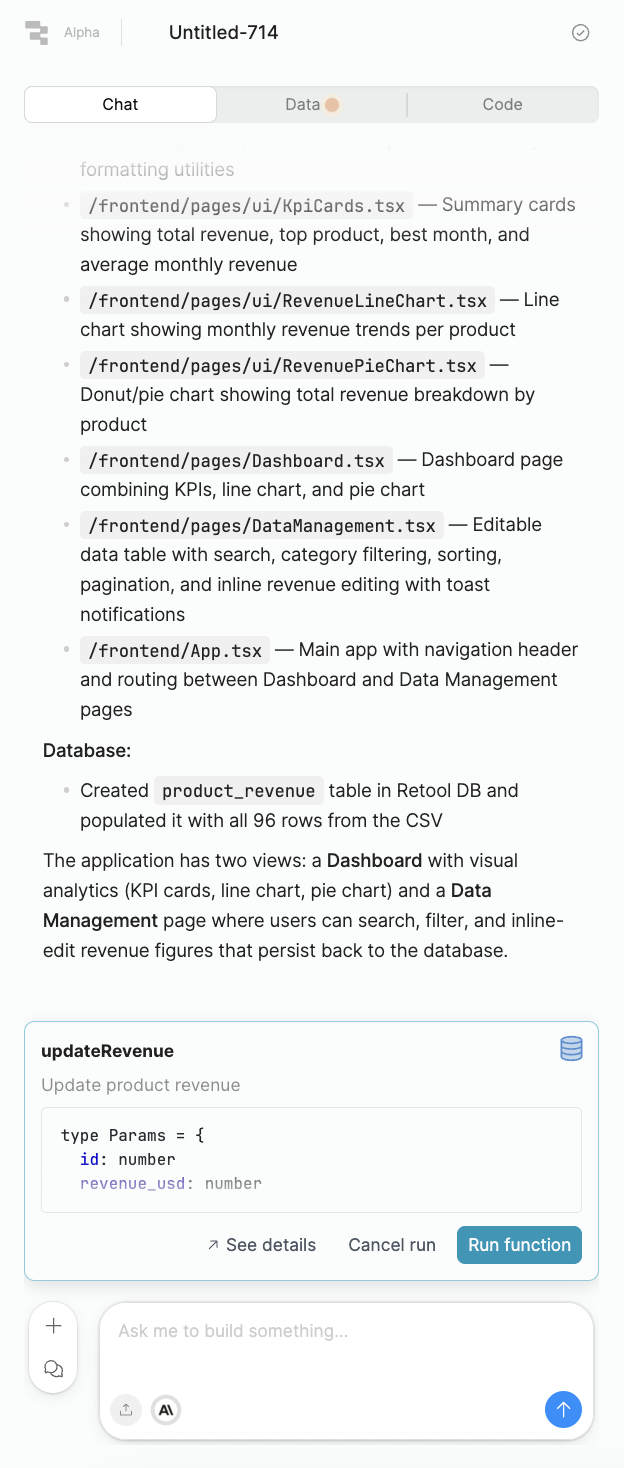

Once the value is changed the first time, the run function dialog appears. Selecting Run Function within a data action executes the query immediately and displays the result set for inspection. This is useful for verifying that a data action is returning the expected data before testing the full app.

History

The History tab within a data action shows prior executions of that function, including timestamps and results. This is helpful for debugging unexpected values or confirming that a write-back completed successfully.

Publish

The publish functionality is still under construction but when finished will provide a URL that customers are publicly able to access the application.

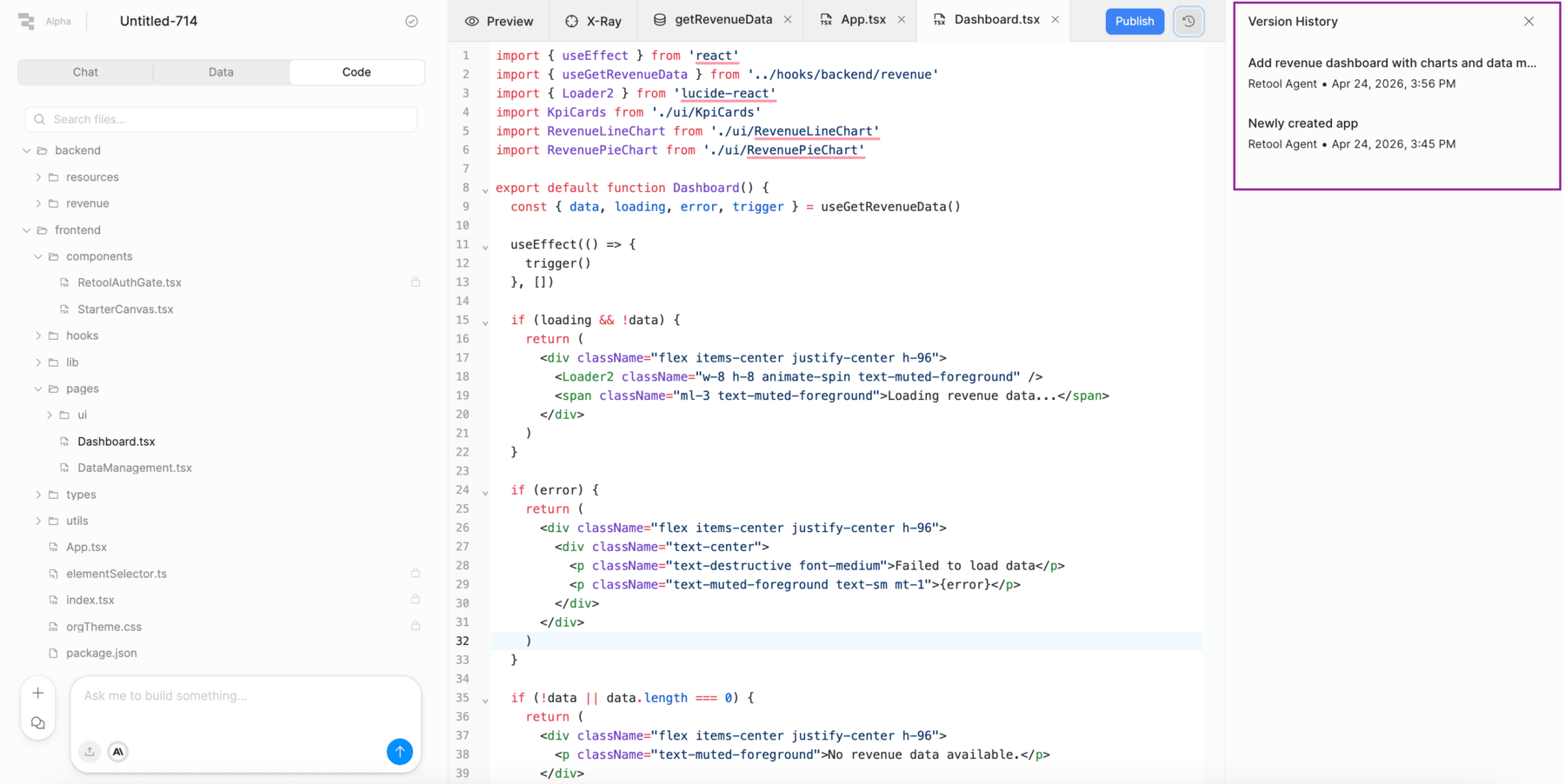

Version History

Version history provides different versions of this application, typically associated with different chat threads.

Summary

In this lab you used Retool to:

• Upload a CSV file as context and generate a full React application from a single prompt
• Explore the Retool Chat panel — including the prompt area, file upload, context size indicator, thread management, and model selection
• Review a live app preview with a line chart, pie chart, and editable data table
• Demonstrate write-back capability by updating a revenue record and seeing it reflected in the chart
• Inspect the generated React source code and data actions

Retool provides an enterprise-grade AppGen workflow that keeps developers in control — combining the speed of AI-generated apps with full access to source code, governed data resources, and Retool's platform (SSO, Source Control, and more).
